(35.114.090) - VAR - 743915 - 3 POINT HITCH, CONTROL VALVE, BRACKET, W/O CAB, W/ DPF

Запчасти Case IH FARMALL 100V (35.114.090) - VAR - 743915 - 3 POINT HITCH, CONTROL VALVE, BRACKET, W/O CAB, W/ DPF (35) - HYDRAULIC SYSTEMS

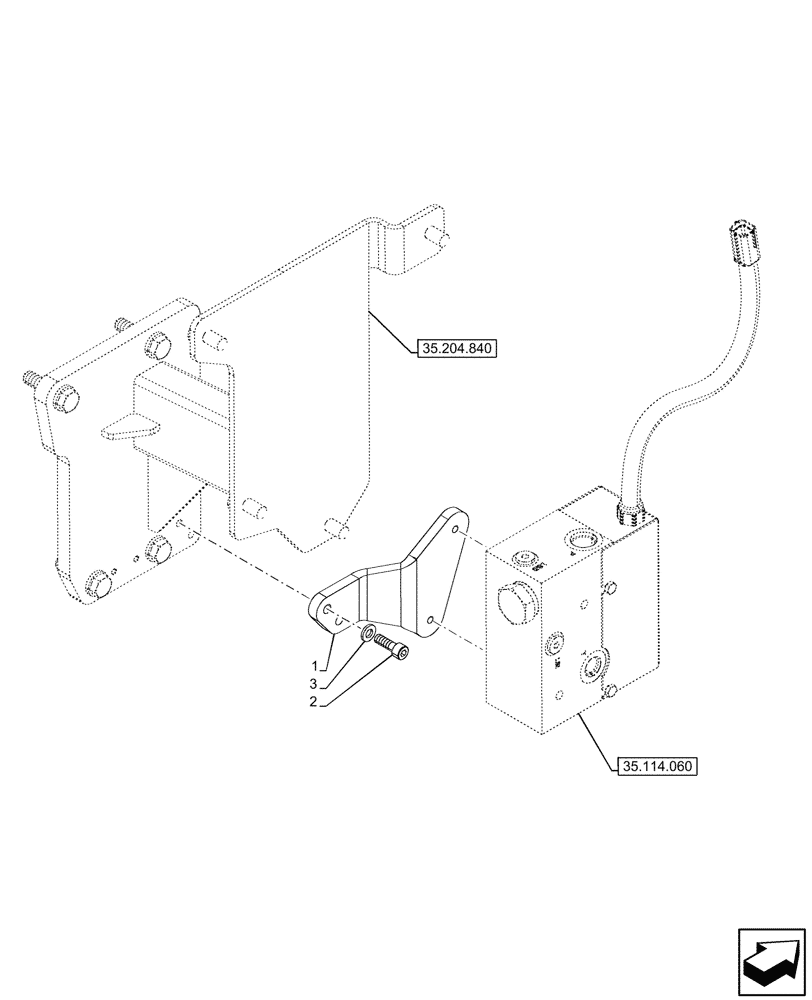

Схема запчастей Case IH FARMALL 100V - (35.114.090) - VAR - 743915 - 3 POINT HITCH, CONTROL VALVE, BRACKET, W/O CAB, W/ DPF (35) - HYDRAULIC SYSTEMS
35.204.840
1
3
2
35.114.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47525820

BRACKET

1шт.

2

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

2шт.

3

11197879

BELLEVILLE WASHER,8.4mm ID x 16mm OD x 2.2mm Thk

2шт.

Выбрано товаров: 3
