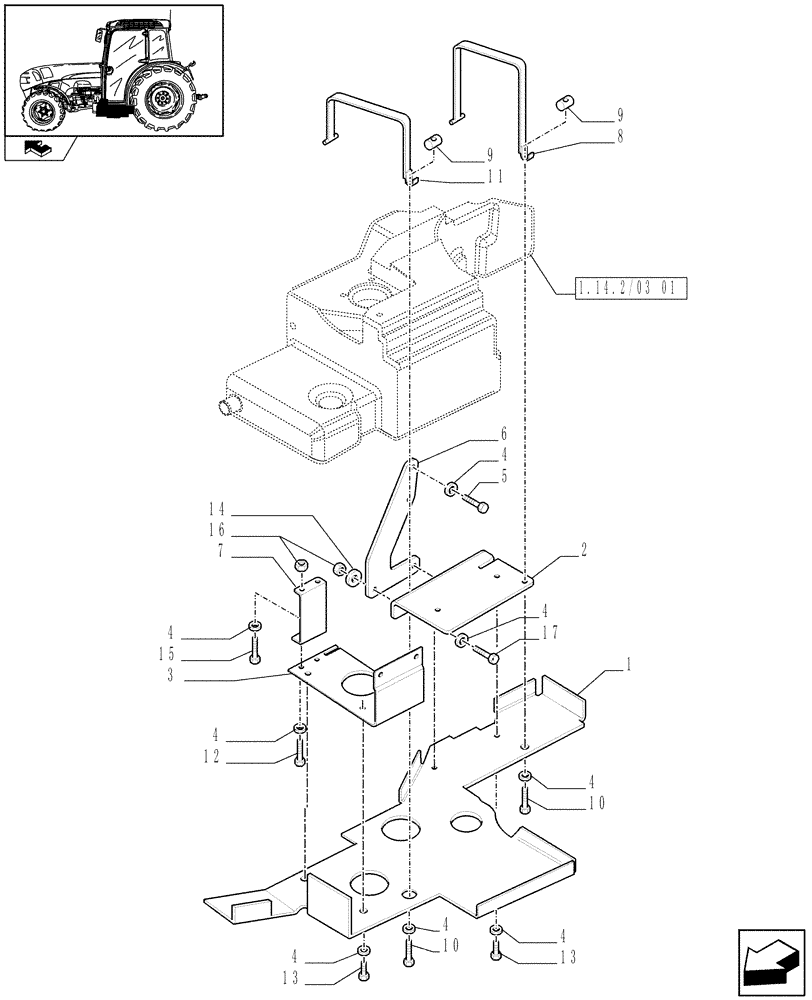

Запчасти Case IH FARMALL 95N (1.14.7/03) - SMALL FUEL TANK - SIDE FUEL TANK SUPPORTS AND FASTENING STRIPS (VAR.332143 / 743501) (02) - ENGINE EQUIPMENT

1

84293769

PLATE

1шт.

2

84296434

BRACKET

1шт.

3

84296433

1шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

14шт.

5

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

6

84296429

BRACKET

1шт.

7

84296427

BRACKET

1шт.

8

87385705

BRACKET

1шт.

9

5120755

PIN,16mm OD x 15mm L

2шт.

10

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

11

87384090

BRACKET

1шт.

12

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

13

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

4шт.

14

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

15

13516920

STUD,M8 x 12mm x 22mm, Cl 8.8

2шт.

16

16100815

NUT,M8 x 1.25, Cl 8

4шт.

17

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.
