Запчасти Case IH FARMALL 95N (1.92.85/02) - SEAT - L/CAB (VAR.333155-334155) (10) - OPERATORS PLATFORM/CAB

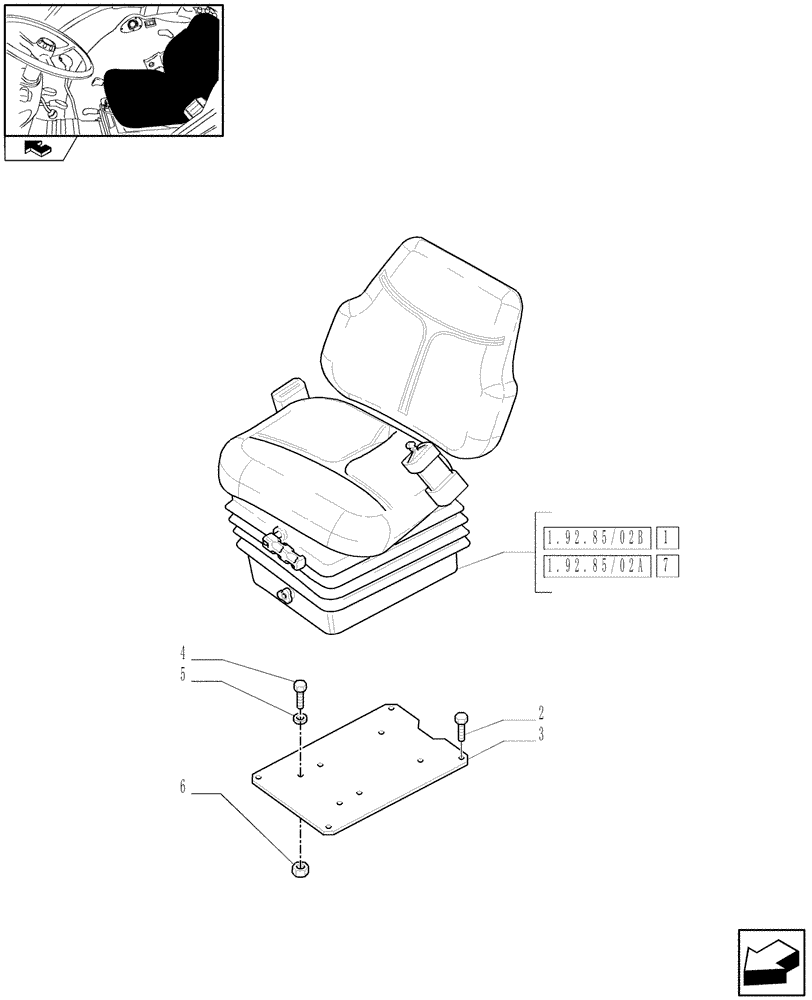

Схема запчастей Case IH FARMALL 95N - (1.92.85/02) - SEAT - L/CAB (VAR.333155-334155) (10) - OPERATORS PLATFORM/CAB
3
home
2
7
1.92.85/02b
1.92.85/02a
1
5
6
4

Артикул

Название

Примечание

Количество

1

87743882

DRIVER SEAT

ASSY, Serial Range: -`0

1шт.

Vinyl Seat with Belts Sand Safety Switch, VAR.333155

1шт.

2

5182236

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

M8 x 20

4шт.

3

5196614

PLATE

1шт.

4

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

M8 x 1.25 x 22

2шт.

5

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

8 x 16 x 1.9

4шт.

6

5182253

NUT

M8 x 1.25 x 22

2шт.

7

87743880

DRIVER SEAT

ASSY, Serial Range: -`0

1шт.

Vinyl Seat with Belts, VAR.334155

1шт.

Выбрано товаров: 9
