(1.92.29/04[01]) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - SHIFTING CONTROLS - END YR 25-JUN-2012 (VAR.330118 / 743508; VAR.332271)

Запчасти Case IH FARMALL 95N (1.92.29/04[01]) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - SHIFTING CONTROLS - END YR 25-JUN-2012 (VAR.330118 / 743508; VAR.332271) (10) - OPERATORS PLATFORM/CAB

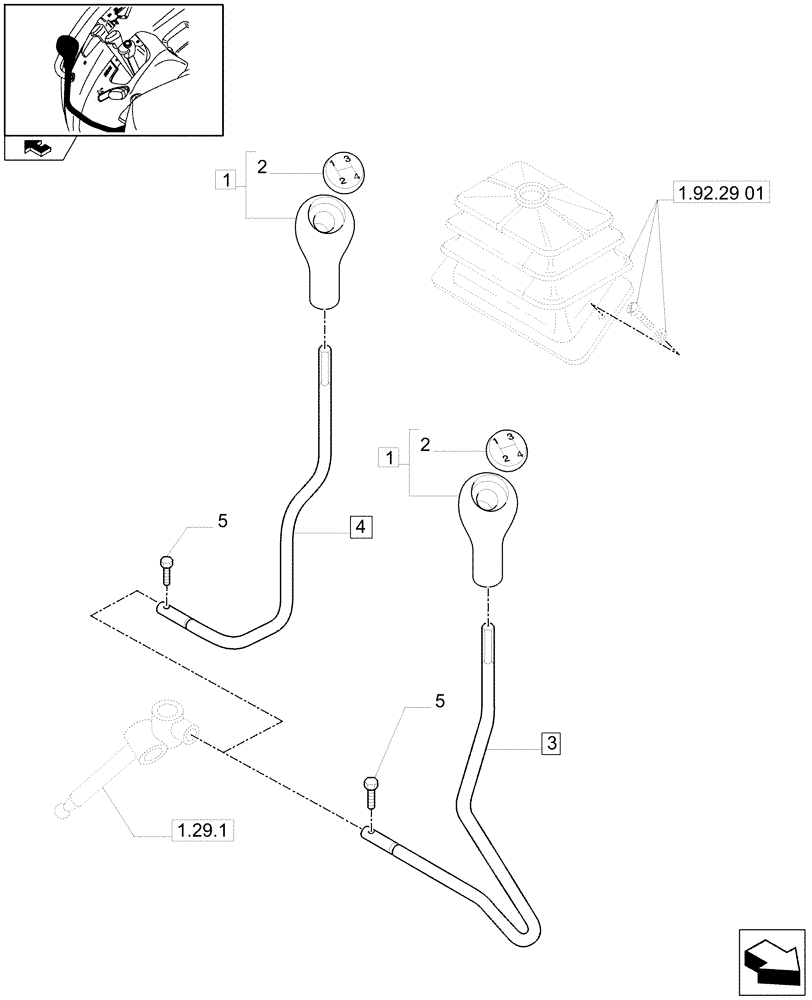

Схема запчастей Case IH FARMALL 95N - (1.92.29/04[01]) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - SHIFTING CONTROLS - END YR 25-JUN-2012 (VAR.330118 / 743508; VAR.332271) (10) - OPERATORS PLATFORM/CAB
5
4
3
1.92.29 01
1.29.1
2
home
2
5
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47056480

KNOB

ASSY, Incl. 2

1шт.

2

47056542

IDEOGRAM

1шт.

3

47129629

LEVER

Incl. 1, 5, 75N, 85N, 95N, W/CAB

1шт.

4

87376736

LEVER

Incl. 1, 5, 65V, 75V, 85V, 95V, W/CAB

1шт.

5

44013453

SCREW,Hex, M12 x 1.25 x 33mm

M12x28

1шт.

Выбрано товаров: 5
