Запчасти Case IH FARMALL 95N (1.89.6/06[02]) - HYDRAULIC LIFT ROD FOR EDC AND TRAILER BRAKE VALVE - VALVE AND SUPPORT (VAR.332966 / 743536) (09) - IMPLEMENT LIFT

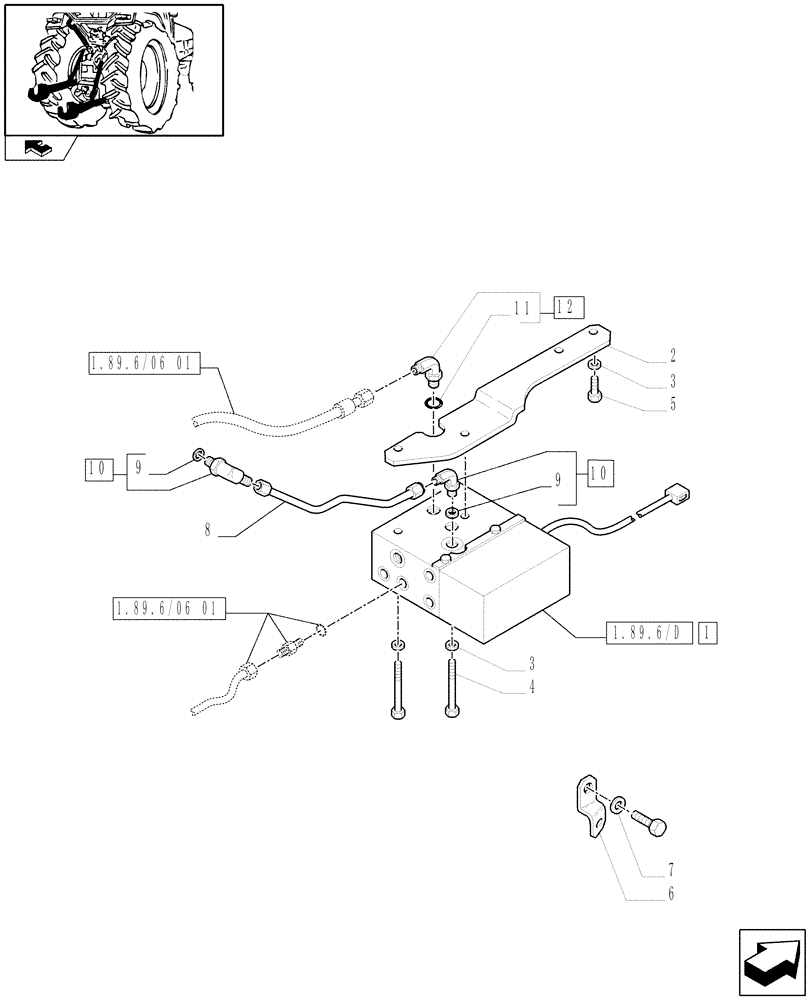

Схема запчастей Case IH FARMALL 95N - (1.89.6/06[02]) - HYDRAULIC LIFT ROD FOR EDC AND TRAILER BRAKE VALVE - VALVE AND SUPPORT (VAR.332966 / 743536) (09) - IMPLEMENT LIFT
1
10
5
7
1.89.6/d
2
1.89.6/06 01
11
6
8
9
1.89.6/06 01
9
4
home
10
3
12
3

Артикул

Название

Примечание

Количество

1

87614167

HYDRAULIC VALVE

ASSY

1шт.

2

84189172

BRACKET

1шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

4

16044924

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

2шт.

5

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

6

5179441

BRACKET

1шт.

7

14499601

WASHER,13mm ID x 20mm OD x 2.5mm Thk

1шт.

8

87609364

RIGID TUBE,16 mm OD

1шт.

9

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

10

5155452

ELBOW

90?, ASSY, Incl 9

1шт.

11

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

12

87727682

HYD CONNECTOR

ASSY, Incl 11

1шт.

Выбрано товаров: 12
