(1.82.7/13) - ELECTRONIC MID MOUNTED VALVES - FILTER

Запчасти Case IH FARMALL 95N (1.82.7/13) - ELECTRONIC MID MOUNTED VALVES - FILTER (07) - HYDRAULIC SYSTEM

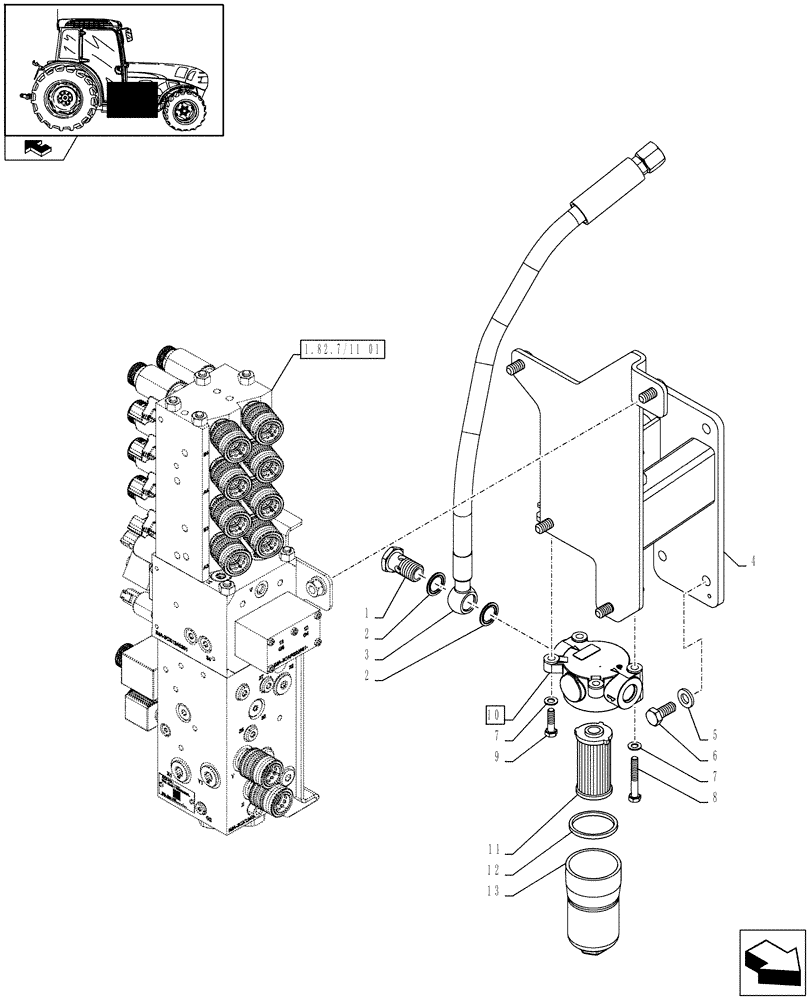

Схема запчастей Case IH FARMALL 95N - (1.82.7/13) - ELECTRONIC MID MOUNTED VALVES - FILTER (07) - HYDRAULIC SYSTEM
6
3
9
1.82.7/11 01
12
2
2
7
4
8
5
11
home
1
7
10
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5182095

BANJO BOLT,M22 x 1.5 x 47mm

1шт.

2

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

2шт.

3

84524193

RETURN PIPE

1шт.

4

84544668

SUPPORT

1шт.

5

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

4шт.

6

11112424

SCREW,Hex, M12 x 30mm, Cl 8.8, Full Thd

4шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

8

16044324

SCREW,Hex, M8 x 1.25 x 55mm, Cl 8.8

2шт.

9

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

10

5197006

FILTER

1шт.

11

5178100

ELEMENT

1шт.

Valid with FARMALL 95N, QUANTUM 105N, QUANTUM 105V, QUANTUM 95N, QUANTUM 95V Models

1шт.

12

5194880

O-RING KIT

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.
