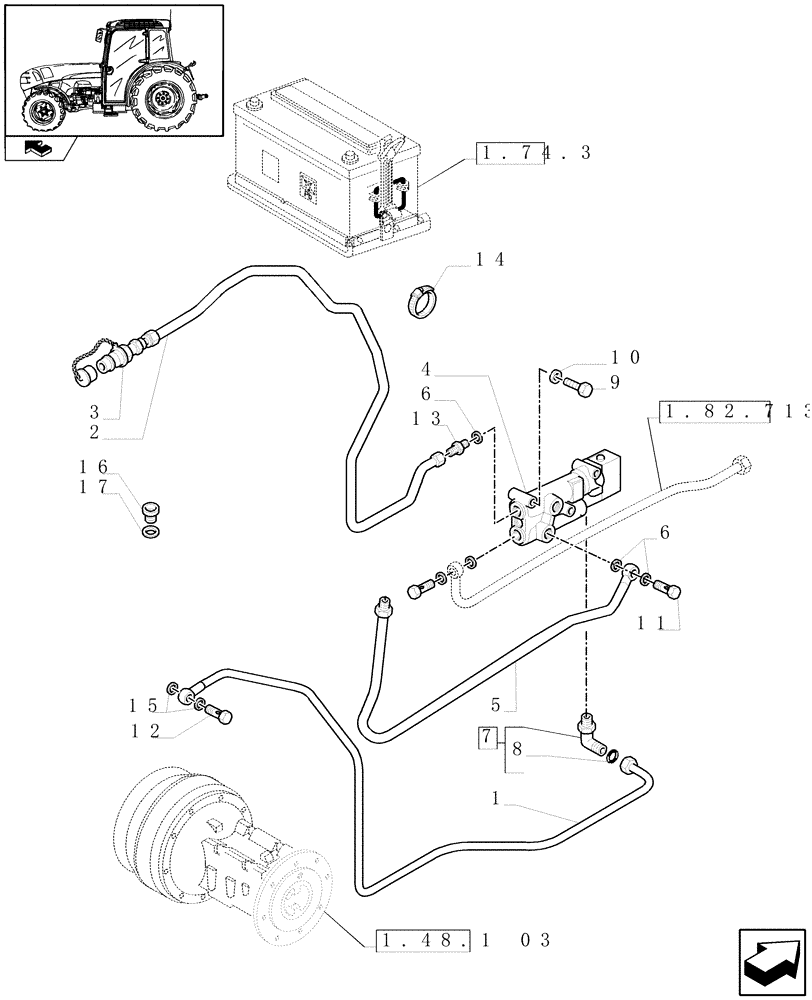

Запчасти Case IH FARMALL 95N (1.82.713[01]) - HYDRAULIC TRAILER BRAKE (INTERNATIONAL) - PIPES AND BRAKE VALVE (VAR.330371-331371) (07) - HYDRAULIC SYSTEM

1

87587308

RIGID TUBE,8 mm OD x 618.9, 351.2 mm L

1шт.

2

5188246

RIGID TUBE,12mm OD

1шт.

3

44015354

QUICK MALE COUPLING

1шт.

4

87758573

HYDRAULIC VALVE

1шт.

5

5186146

RIGID TUBE

, Serial Range: -`0

1шт.

Hydraulic Trailer Brake - International for MDC and EDC, VAR.330371

1шт.

6

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

, Serial Range: -`0

1шт.

Hydraulic Trailer Brake - International for MDC and EDC, VAR.330371

1шт.

7

79067016

HYD CONNECTOR

ASSY, Incl 8

1шт.

8

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

9

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

10

10516674

LOCK WASHER,M8

2шт.

11

5184345

BANJO BOLT,M18 x 1.5 x 34mm

, Serial Range: -`0

1шт.

Hydraulic Trailer Brake - International for MDC and EDC, VAR.330371

1шт.

12

10185011

BANJO BOLT,M12 x 1.25 x 23mm

1шт.

13

5158799

HYD CONNECTOR

1шт.

14

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

50 x 32

1шт.

15

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

2шт.

16

10273140

PLUG,Hex Skt, M18 x 1.5

1шт.

17

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.
