(1.75.6[02]) - REAR WORKLAMPS, REAR LAMPS AND REFLECTOR - L/CAB

Запчасти Case IH FARMALL 95N (1.75.6[02]) - REAR WORKLAMPS, REAR LAMPS AND REFLECTOR - L/CAB (06) - ELECTRICAL SYSTEMS

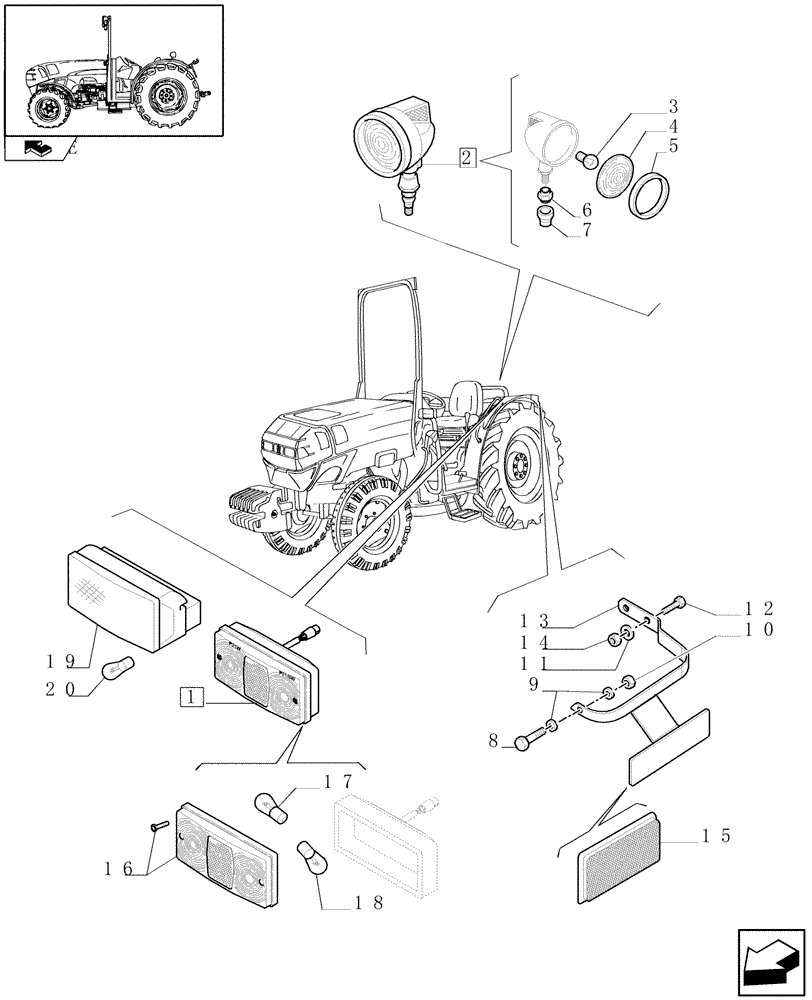

Схема запчастей Case IH FARMALL 95N - (1.75.6[02]) - REAR WORKLAMPS, REAR LAMPS AND REFLECTOR - L/CAB (06) - ELECTRICAL SYSTEMS
3
16
6
5
1
home
7
15
14
20
18
4
13
2
19
10
11
8
17
12
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5170315

TAIL LAMP,12V, 21W, Amber/Red

ASSY

2шт.

2

5129461

WORK LAMP,12V, 55W, Clear

ASSY

1шт.

3

10861290

BULB,12V, 35W

12v-35W

1шт.

4

9957848

LENS

10 x 2.5

1шт.

5

9989025

SEAL

1шт.

6

9957892

NUT

1шт.

7

9958960

DUST CAP

1шт.

8

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

9

14446804

WASHER,3.6mm ID x 10mm OD x 0.6mm Thk

4шт.

10

10794014

NUT,M4, Cl 8

2шт.

11

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

4шт.

12

15966217

SCREW,Pan Hd, Sq Nk, M6 x 18mm, Cl 5.8

4шт.

13

5194750

SUPPORT

RH

1шт.

13

5194752

SUPPORT

LH

1шт.

13

47123809

SUPPORT

LH

1шт.

Lighting System for NA Market, VAR. 331760 75N Model, 85N Model, 95N Model, 105N Model

1шт.

13

47123808

SUPPORT

RH

1шт.

Lighting System for NA Market, VAR. 331760 75N Model, 85N Model, 95N Model, 105N Modell

1шт.

14

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

15

82002957

REFLECTOR

2шт.

15

5198365

REFLECTOR

2шт.

16

9971658

LENS

2шт.

17

529068

BULB,#1156, 12V, 21W

2шт.

18

14144690

BULB,P21/5W, 12V, 21/5W

2шт.

19

5198445

TAIL LAMP,12V-21W, RH

ASSY, RH, Incl.20

1шт.

Lighting System for NA Market, VAR. 331760 75N Model, 85N Model, 95N Model, 105N Modell

1шт.

19

5198446

TAIL LAMP,12V-21W, LH

ASSY, LH, Incl.20

1шт.

Lighting System for NA Market, VAR. 331760 75N Model, 85N Model, 95N Model, 105N Model

1шт.

20

14151090

BULB

12V

2шт.
