Запчасти Case IH FARMALL 95N (1.44.0) - FRONT WEIGHT CARRIER WITH INTEGRATED TOW HOOK FOR STANDARD AXLE (VAR.330225 / 743503) (04) - FRONT AXLE & STEERING

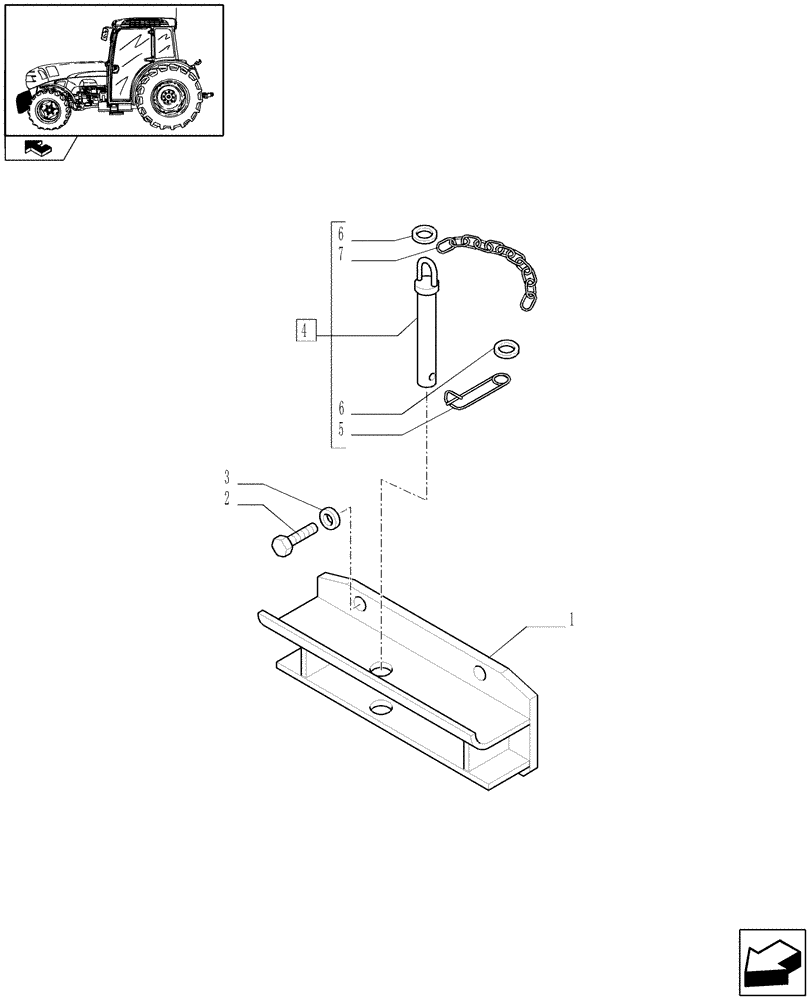

Схема запчастей Case IH FARMALL 95N - (1.44.0) - FRONT WEIGHT CARRIER WITH INTEGRATED TOW HOOK FOR STANDARD AXLE (VAR.330225 / 743503) (04) - FRONT AXLE & STEERING
home
6
4
5
3
7
2
1
6

Артикул

Название

Примечание

Количество

1

5199312

SUPPORT

1шт.

2

11124734

BOLT,Hex, M20 x 50, 10.9, Full Thd

4шт.

3

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

4шт.

4

5171214

HITCH PIN,32mm OD x 120mm L

ASSY, Incl 5-7

1шт.

5

5152004

HAIR PIN COTTER,195mm L

1шт.

6

44901192

SNAP RING,25mm ID

2шт.

7

596063

LINK CHAIN,13 Links x 18mm = 234mm L

1шт.

Выбрано товаров: 7
