(1.43.0/03[01]) - DYNAMIC FRONT FENDERS (310MM, 4WD) - SUPPORT (VAR.335485 / 743533)

Запчасти Case IH FARMALL 95N (1.43.0/03[01]) - DYNAMIC FRONT FENDERS (310MM, 4WD) - SUPPORT (VAR.335485 / 743533) (04) - FRONT AXLE & STEERING

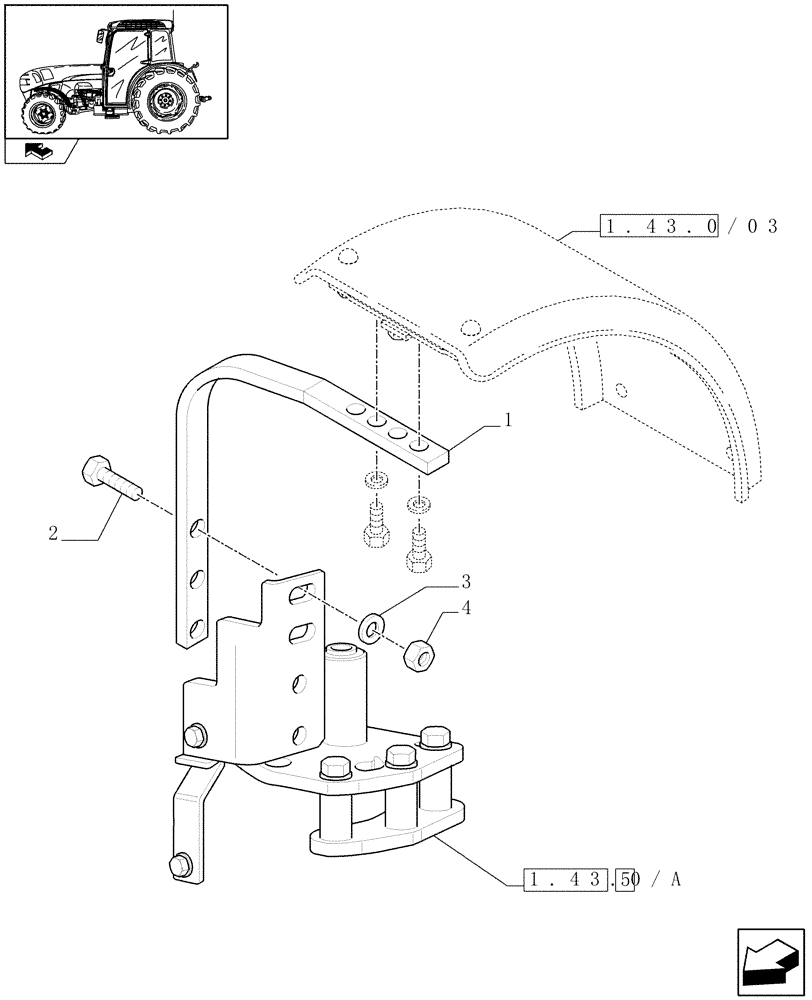

Схема запчастей Case IH FARMALL 95N - (1.43.0/03[01]) - DYNAMIC FRONT FENDERS (310MM, 4WD) - SUPPORT (VAR.335485 / 743533) (04) - FRONT AXLE & STEERING
3
4
2
1.43.0/a
5
1
1.43.0/03 02
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84327318

SUPPORT

2шт.

2

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

4шт.

3

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

4

12574514

LOCK NUT,M10 x 1.25

4шт.

5

84318149

SUPPORT

RH, ASSY

1шт.

5

84317593

SUPPORT

LH, ASSY

1шт.

Выбрано товаров: 6
