Запчасти Case IH FARMALL 95N (1.40.1/07) - STD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - DIFFERENTIAL (04) - FRONT AXLE & STEERING

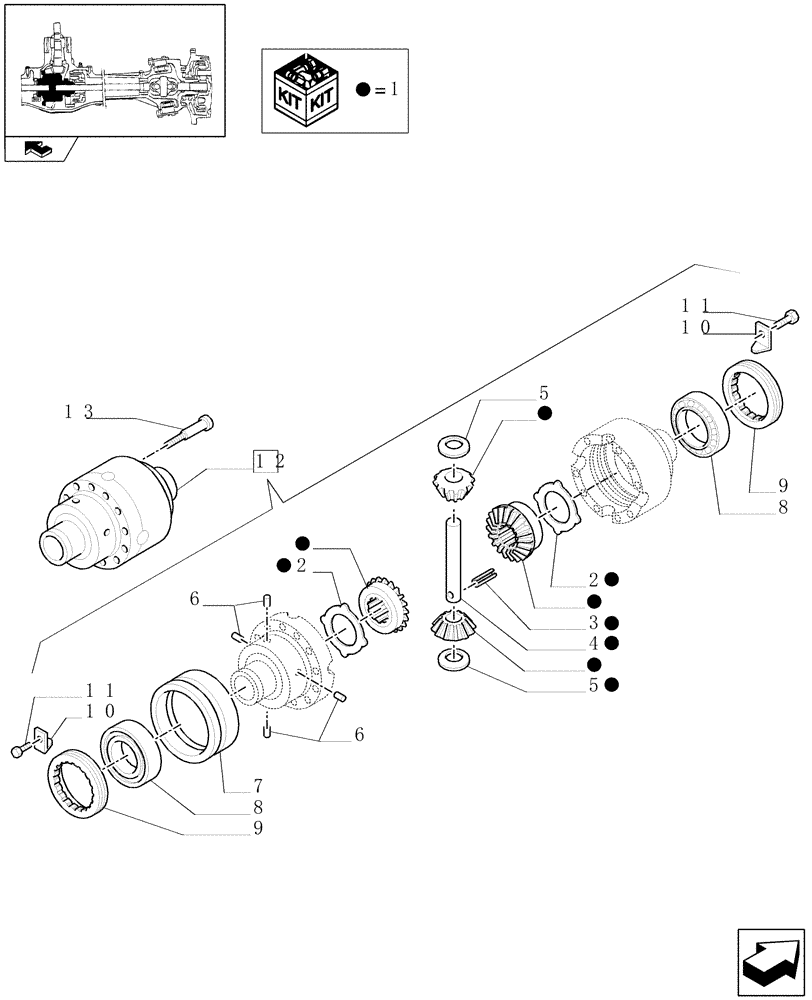

Схема запчастей Case IH FARMALL 95N - (1.40.1/07) - STD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - DIFFERENTIAL (04) - FRONT AXLE & STEERING
7
13
5
11
1
1
1
10
6
home
9
1
10
1
2
5
1
2
1
8
12
3
11
1
1
8
9
1
1
4
6

Артикул

Название

Примечание

Количество

1

5194182

KIT

ASSY, Incl 2-5

1шт.

2

5194183

DISC

2шт.

3

84592012

PIN,6mm OD x 40mm L, Slotted

6 x 28

1шт.

4

1966157C1

SHAFT

1шт.

5

5194186

WASHER

2шт.

6

84582583

PIN

10 x 15.2

4шт.

7

5194188

SLEEVE

1шт.

8

84578839

NEEDLE ROLLER

2шт.

9

5194190

RING NUT,M94 x 2

2шт.

10

84582585

PLATE

2шт.

11

112486A1

BOLT,Hex, M6 x 12

M6 x 10

2шт.

12

5194193

DIFFERENTIAL GEAR

ASSY, Incl 2-11

1шт.

13

84582584

SCREW

12шт.

Выбрано товаров: 13
