(1.40.1/02[01]) - STD FRONT AXLE WITH EL.-HYDR. DIFF. LOCK LESS FRONT BRAKES (40KM/H) - SWIVEL HOUS. AND STEER. CYL.

Запчасти Case IH FARMALL 95N (1.40.1/02[01]) - STD FRONT AXLE WITH EL.-HYDR. DIFF. LOCK LESS FRONT BRAKES (40KM/H) - SWIVEL HOUS. AND STEER. CYL. (04) - FRONT AXLE & STEERING

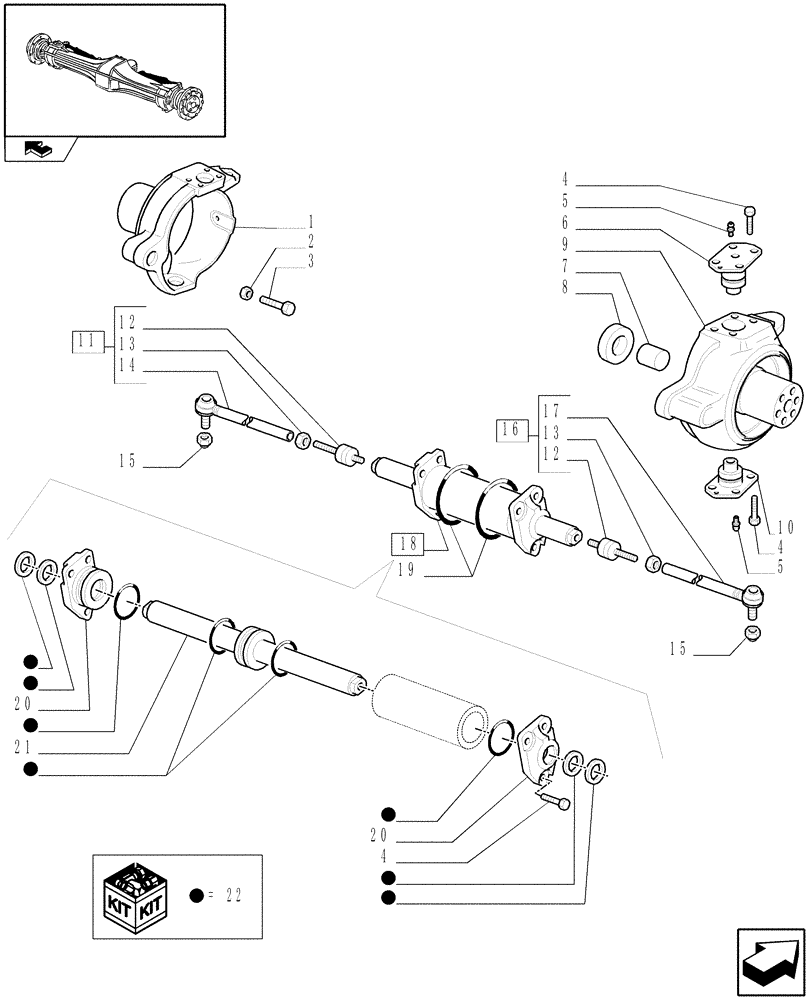

Схема запчастей Case IH FARMALL 95N - (1.40.1/02[01]) - STD FRONT AXLE WITH EL.-HYDR. DIFF. LOCK LESS FRONT BRAKES (40KM/H) - SWIVEL HOUS. AND STEER. CYL. (04) - FRONT AXLE & STEERING
14
22
22
20
22
22
12
15
21
5
18
22
12
4
1
20
3
7
17
15
19
11
22
13
4
13
home
2
9
10
22
22
6
4
8
16
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87313788

CUP COVER

LH

1шт.

2

87313789

NUT

M16

2шт.

3

5194264

BOLT,M16 x 75mm

M16 x 75

2шт.

4

87515424

SCREW,#12 - 25 x 1 3/4"

22шт.

5

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

4шт.

6

87313790

PIN

1шт.

7

87313791

BUSHING

2шт.

8

87313792

RUBBER RING

2шт.

9

87313793

CUP COVER

RH

1шт.

10

5194261

PIN

2шт.

11

87313794

TRACK ROD ASSY

LH, ASSY, Incl 12-14

1шт.

12

87313795

BALL JOINT,M18 / M20

2шт.

13

87313796

NUT

M18

2шт.

14

87313797

STEERING LEVER

LH

1шт.

15

12164224

NUT,M18 x 1.5, Cl 10

2шт.

16

87313800

TRACK ROD ASSY

RH, ASSY, Incl 12, 13, 17

1шт.

17

87313802

TRACK ROD ASSY

RH

1шт.

18

5194202

STEERING CYLINDER

ASSY, Incl 4, 20-22

1шт.

19

84592007

RING

2шт.

20

5194204

FLANGE

2шт.

21

5194203

ROD

1шт.

22

5194205

SEAL KIT

1шт.
