(1.40.1) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - PIPES

Запчасти Case IH FARMALL 95N (1.40.1) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - PIPES (04) - FRONT AXLE & STEERING

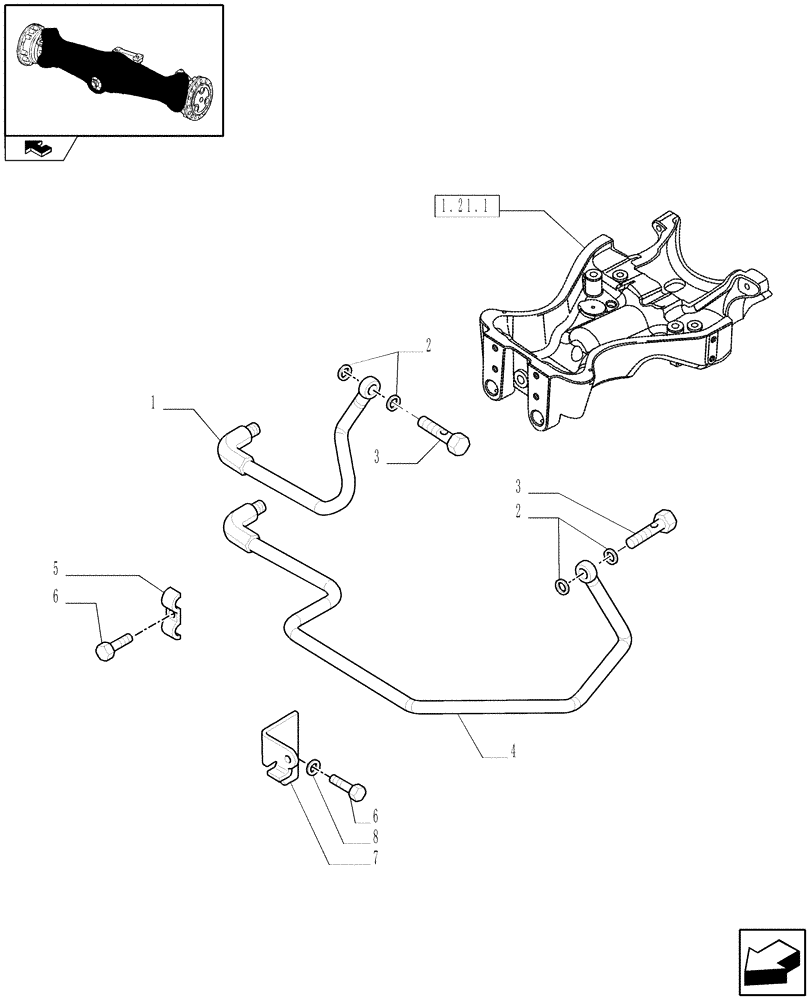

Схема запчастей Case IH FARMALL 95N - (1.40.1) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - PIPES (04) - FRONT AXLE & STEERING
8
6
6
1.21.1
4
2
5
home
2
3
3
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47125598

RIGID TUBE

1шт.

2

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

4шт.

3

4864083

BANJO BOLT,M14 x 1.5 x 30mm

2шт.

4

47125593

RIGID TUBE

1шт.

5

4999554

CLAMP,2 Hoses

1шт.

6

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

7

47125596

RETAINER COLLAR

1шт.

8

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 8
