(1.33.0) - 4WD IDLER CASE AND COVERS

Запчасти Case IH FARMALL 95N (1.33.0) - 4WD IDLER CASE AND COVERS (04) - FRONT AXLE & STEERING

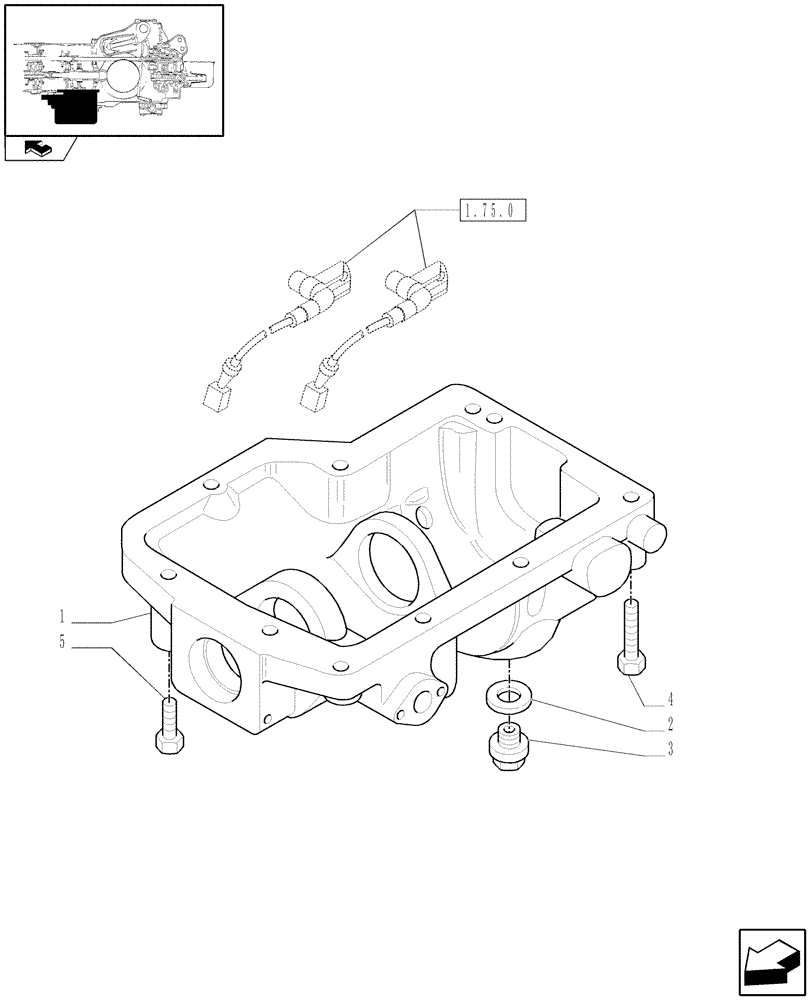

Схема запчастей Case IH FARMALL 95N - (1.33.0) - 4WD IDLER CASE AND COVERS (04) - FRONT AXLE & STEERING
5
2
4
1.75.0
3
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84490051

TRANSFER BOX

1шт.

2

10265160

SEALING WASHER,35.4mm ID x 41mm OD x 1.5mm Thk

1шт.

3

5151213

PLUG,M35 x 1.5

M35 x 1.5

1шт.

4

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

3шт.

5

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

5шт.

Выбрано товаров: 5
