Запчасти Case IH FARMALL 95N (1.32.4) - DIFFERENTIAL GEARS (03) - TRANSMISSION

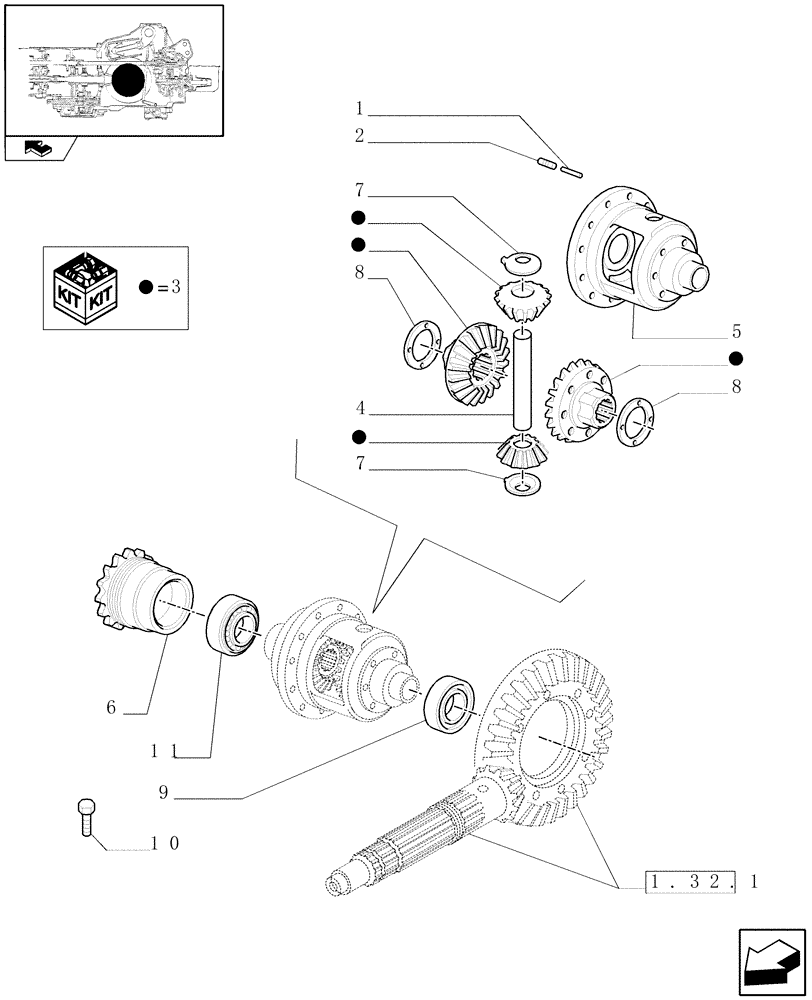

Схема запчастей Case IH FARMALL 95N - (1.32.4) - DIFFERENTIAL GEARS (03) - TRANSMISSION
1.32.1 01
7
9
11
5
3
8
6
home
2
3
1
3
3
10
7
3
3
8
4

Артикул

Название

Примечание

Количество

1

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

2

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

3

87546041

GEAR SET

1шт.

4

5148935

PIN,24mm OD x 144mm L

1шт.

5

87312351

CARRIER

1шт.

6

87362211

SUPPORT

1шт.

7

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

8

5148936

THRUST WASHER,44mm ID x 66mm OD x 1.6mm Thk

1шт.

8

5148937

THRUST WASHER,44mm ID x 66mm OD x 1.8mm Thk

1шт.

8

5148938

THRUST WASHER,44mm ID x 66mm OD x 1.7mm Thk

1шт.

8

5148939

THRUST WASHER,44mm ID x 66mm OD x 1.5mm Thk

1шт.

8

5148940

THRUST WASHER,44mm ID x 66mm OD x 1.4mm Thk

1шт.

8

5167387

THRUST WASHER,44mm ID x 66mm OD x 1.9mm Thk

1шт.

8

5181357

THRUST WASHER,44.00mm ID x 66.00mm OD x 2.2mm T

1шт.

8

5181356

THRUST WASHER,44.00mm ID x 66.00mm OD x 2.1mm T

1шт.

8

5167388

THRUST WASHER,44mm ID x 66mm OD x 2mm Thk

1шт.

9

87312350

TAPERED BEARING,50mm ID x 90mm OD x 21.75mm W

1шт.

10

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

11

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

1шт.

Выбрано товаров: 19
