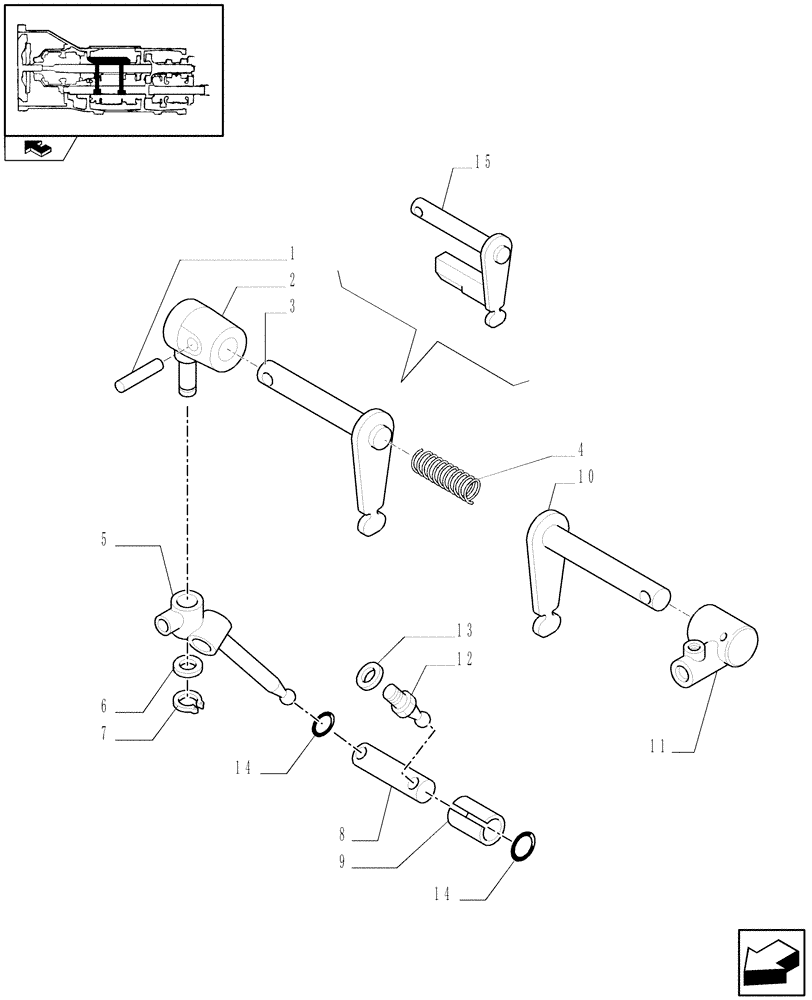

Запчасти Case IH FARMALL 95N (1.29.1) - GEARBOX OUTER CONTROLS, REDUCTION UNIT GEAR BOX LEVER, REVERSER ROD (03) - TRANSMISSION

1

14607370

ROLL PIN,M8 x 45, Slotted

1шт.

2

5168293

HUB

1шт.

3

5171926

ROD,89mm L

1шт.

For Mechanical Transmission

1шт.

4

5157487

SPRING,9.5mm OD x 44mm L

1шт.

5

87319888

LEVER

1шт.

6

13550704

WASHER,16.4mm ID x 30mm OD x 3mm Thk

16 x 30

1шт.

7

300625

SNAP RING,M16, Ext

1шт.

8

5168295

TIE-ROD,2x13mm ID x 16mm OD x 70mm L

1шт.

9

10125574

CLAMP,13mm

2шт.

10

5178144

ROD,117.5mm L

Reverse

1шт.

For Mechanical Transmission

1шт.

11

5187606

HUB

Reverse

1шт.

For Mechanical Transmission

1шт.

12

5166895

BALL STUD,M8

1шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

14

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

15

5177007

ROD,89mm L

1шт.

For Hydraulic Transmission

1шт.
