(1.17.0/01[01]) - COOLING TANK AND RELATED PARTS

Запчасти Case IH FARMALL 95N (1.17.0/01[01]) - COOLING TANK AND RELATED PARTS (02) - ENGINE EQUIPMENT

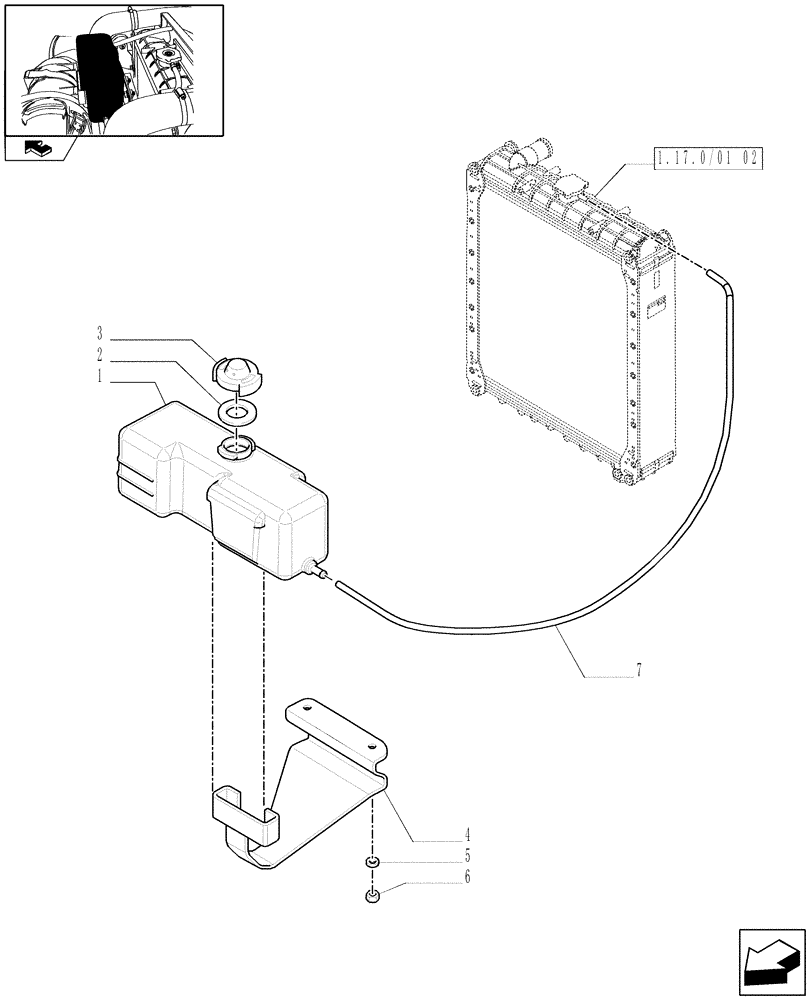

Схема запчастей Case IH FARMALL 95N - (1.17.0/01[01]) - COOLING TANK AND RELATED PARTS (02) - ENGINE EQUIPMENT
home
1.17.0/01 02
1
6
7
4
2
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5176648

TANK

1шт.

2

4153008

SEAL

SEALRING

1шт.

3

4274034

CAP

1шт.

4

87476202

SUPPORT

1шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

6

16100815

NUT,M8 x 1.25, Cl 8

2шт.

7

84150475

RADIATOR HOSE,7.00 mm ID x 271.00 mm

1шт.
