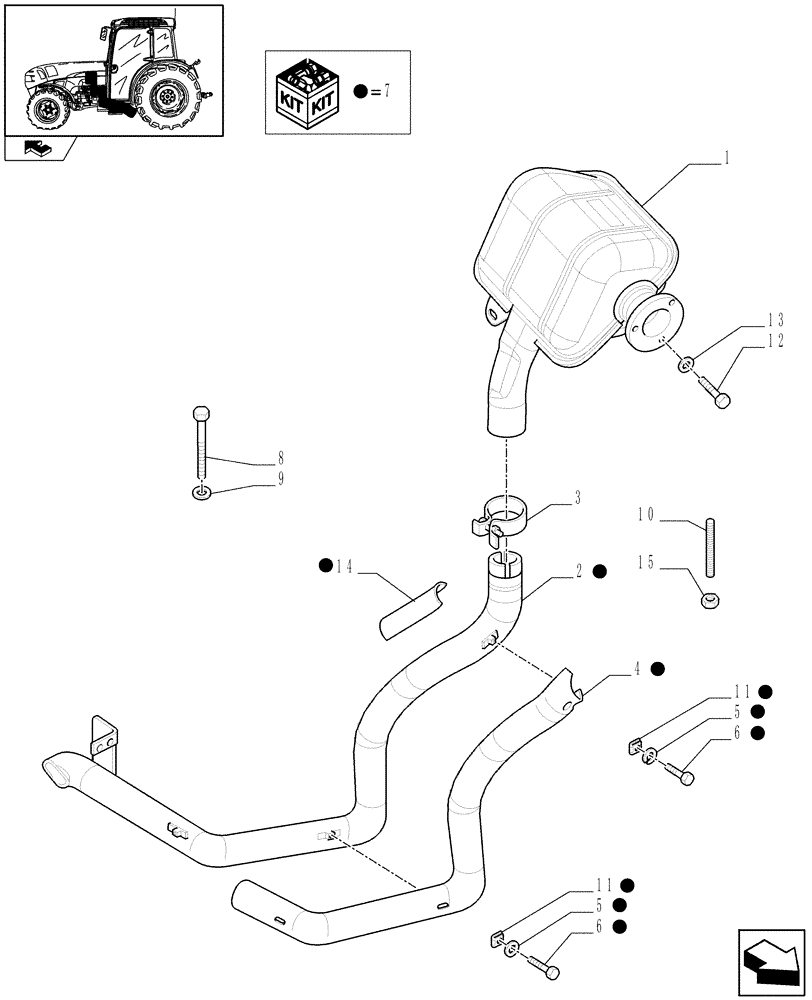

Запчасти Case IH FARMALL 95N (1.15.1/03) - HORIZONTAL EXHAUST WITH GUARD SHIELD (VAR.332150) (02) - ENGINE EQUIPMENT

1

87371188

MUFFLER

1шт.

2

87474464

GUARD

1шт.

3

87667303

HOSE CLAMP,58mm - 58.5mm

1шт.

4

87474511

GUARD

1шт.

5

12646604

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

3шт.

6

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

3шт.

7

87472557

MUFFLER

ASSY

1шт.

8

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

10

13516920

STUD,M8 x 12mm x 22mm, Cl 8.8

M8 x 12 x 22

1шт.

11

14189071

SPRING NUT,M6

NUT

3шт.

12

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

14

84167172

GUARD

1шт.

15

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.
