Запчасти Case IH FARMALL 95N (1.15.1/01) - HORIZONTAL EXHAUST AND SILENCER (02) - ENGINE EQUIPMENT

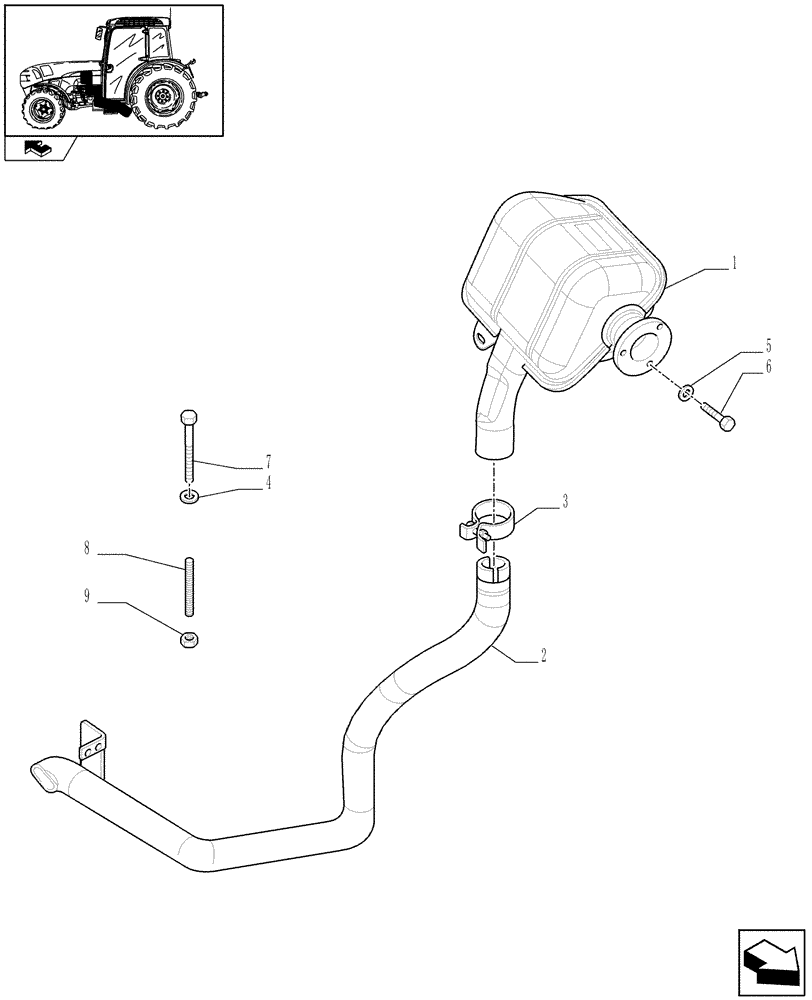

Схема запчастей Case IH FARMALL 95N - (1.15.1/01) - HORIZONTAL EXHAUST AND SILENCER (02) - ENGINE EQUIPMENT
2
9
1
3
5
7
4
6
8
home

Артикул

Название

Примечание

Количество

1

87371188

MUFFLER

1шт.

2

87474523

EXHAUST SYSTEM PIPE

1шт.

3

87667303

HOSE CLAMP,58mm - 58.5mm

1шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

6

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

7

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

8

13516920

STUD,M8 x 12mm x 22mm, Cl 8.8

M8 x 12 x 22

1шт.

9

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

Выбрано товаров: 9
