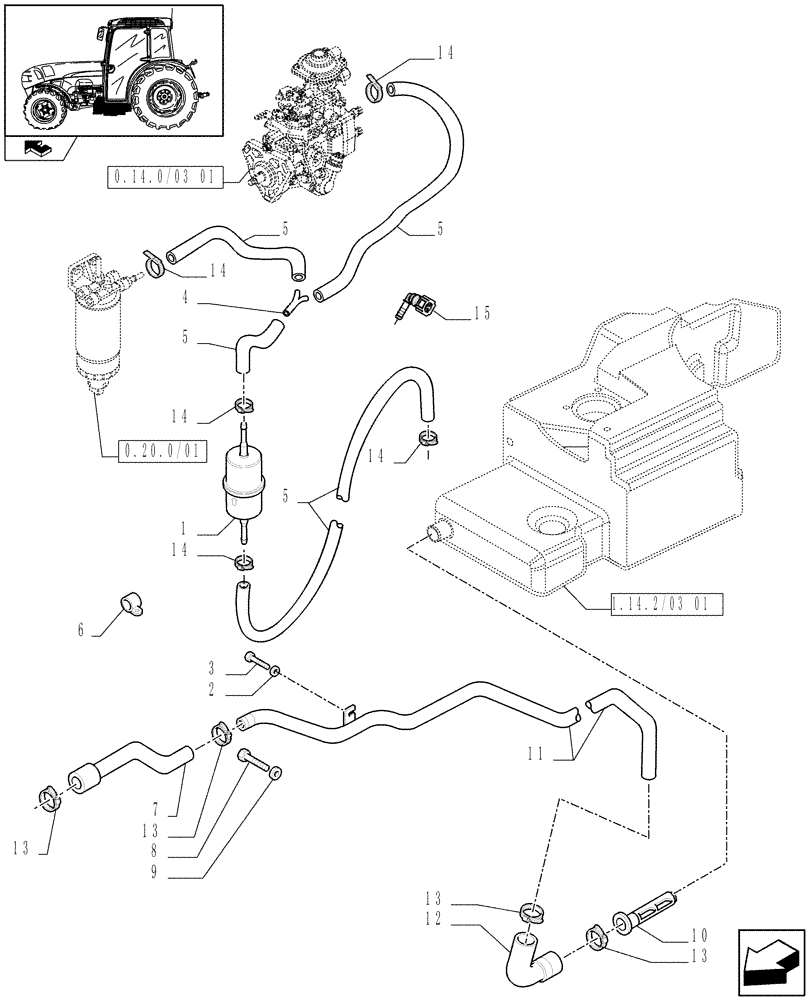

Запчасти Case IH FARMALL 95N (1.14.2/03[03]) - SMALL FUEL TANK - FUEL LINES (VAR.332143 / 743501) (02) - ENGINE EQUIPMENT

1

87329736

FUEL FILTER

Inline

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

3

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

4

5110573

FITTING

1шт.

5

87535208

HOSE,7mm ID x 12mm OD x 5000mm L

5000MM, 7 x 12

1шт.

6

10450390

RETAINER COLLAR,14mm, Coat, 9mm Bolt Hole, P Type

1шт.

7

87616041

RIGID TUBE

1шт.

8

14331024

BOLT,M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

9

11197974

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

1шт.

10

84229690

VALVE

1шт.

11

84323651

FUEL TUBE

1шт.

12

84274136

FLEXIBLE HOSE

1шт.

13

87752541

HOSE CLIP,32-40mm

D=32-40

4шт.

14

10186590

CLAMP,11mm - 13mm

9шт.

15

87489624

HYD CONNECTOR,Red Locking Spring

Red

1шт.

15

87489625

HYD CONNECTOR

Green

1шт.
