Запчасти Case IH FARMALL 95N (1.14.2/02[01]) - SIDE FUEL TANK - D6808 (02) - ENGINE EQUIPMENT

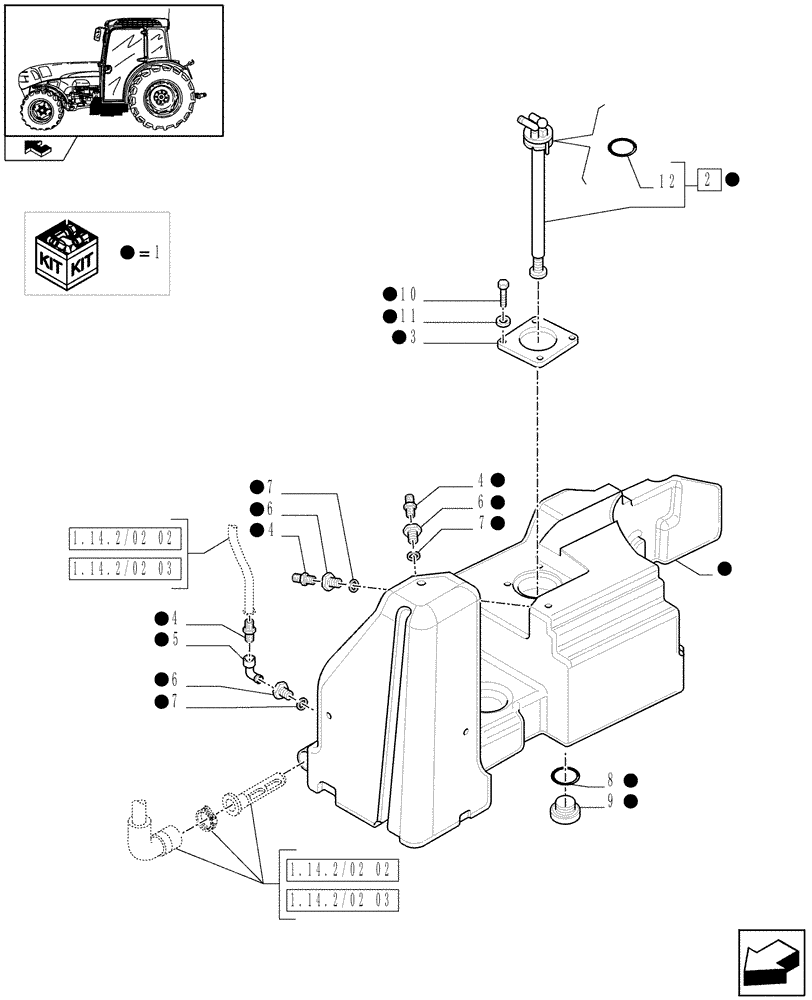

Схема запчастей Case IH FARMALL 95N - (1.14.2/02[01]) - SIDE FUEL TANK - D6808 (02) - ENGINE EQUIPMENT
1
4
1
2
1
8
6
7
11
1
3
12
4
1
6
1
1
1
1.14.2/02 02
home
1.14.2/02 03
1.14.2/02 02
1.14.2/02 03
1
9
7
1
1
1
10
5
1
1
1
1
7
4
6
1
1
1

Артикул

Название

Примечание

Количество

1

84274049

FUEL TANK

ASSY, 27l

1шт.

2

87610011

LEVEL GAUGE

1шт.

3

87341216

PLATE

1шт.

4

5186203

HYD CONNECTOR,M1/4-9

3шт.

5

5184539

HYD CONNECTOR,1/4" GAS - 1/4" GAS - 90°

2шт.

6

5186758

REDUCER,3/8"

3шт.

7

14463181

O-RING,921" ID x 0.139" Width

3шт.

8

14463889

O-RING,34.52mm ID x 3.53" Width

1шт.

9

82019464

PLUG,3/4" GAS x 13.5mm L

1шт.

10

10902524

SCREW,Hex, M6 x 22mm, Cl 8.8

4шт.

11

14496404

WASHER,M6 x 12 x 2 Thk

4шт.

12

14471780

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

1шт.

Выбрано товаров: 12
