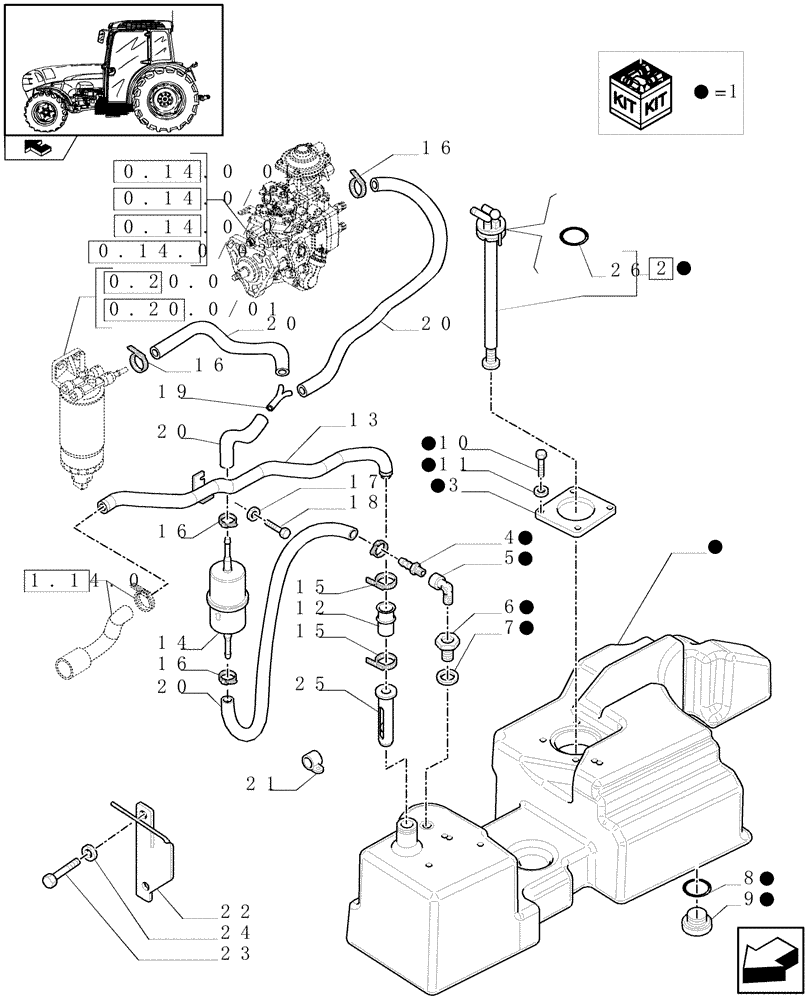

Запчасти Case IH FARMALL 95N (1.14.2/01) - SIDE FUEL TANK AND PIPES - C6808 (02) - ENGINE EQUIPMENT

1

87528875

TANK

ASSY, 27l

1шт.

2

87610011

LEVEL GAUGE

1шт.

3

87341216

PLATE

1шт.

4

5186203

HYD CONNECTOR,M1/4-9

3шт.

5

5184539

HYD CONNECTOR,1/4" GAS - 1/4" GAS - 90°

3шт.

6

5186758

REDUCER,3/8"

3шт.

7

14463181

O-RING,921" ID x 0.139" Width

3шт.

8

14463889

O-RING,34.52mm ID x 3.53" Width

1шт.

9

82019464

PLUG,3/4" GAS x 13.5mm L

1шт.

10

10902524

SCREW,Hex, M6 x 22mm, Cl 8.8

4шт.

11

17094714

LOCK WASHER,M6 x 13

4шт.

12

87616034

HOSE,28.00 mm ID, 32.00 mm ID x 160.00 mm

1шт.

13

87617787

RIGID TUBE,562, 256 mm L

1шт.

75N Model, 85N Model

1шт.

13

87616037

RIGID TUBE

1шт.

95N Model

1шт.

14

87329736

FUEL FILTER

Inline

1шт.

15

87752541

HOSE CLIP,32-40mm

D=32-40

2шт.

16

10186590

CLAMP,11mm - 13mm

12шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

18

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

19

5110573

FITTING

1шт.

20

82849374

HOSE,7mm ID x 1700mm L

1шт.

21

10450390

RETAINER COLLAR,14mm, Coat, 9mm Bolt Hole, P Type

1шт.

22

87588823

BRACKET

1шт.

75N Model, 85N Model

1шт.

23

14331024

BOLT,M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

75N Model, 85N Model

1шт.

24

11197974

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

1шт.

75N Model, 85N Model

1шт.

25

84131580

RIGID TUBE

, Serial Range: -C6578

1шт.

25

84229690

VALVE

, Start Serial: D6578

1шт.

26

14471780

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

1шт.
