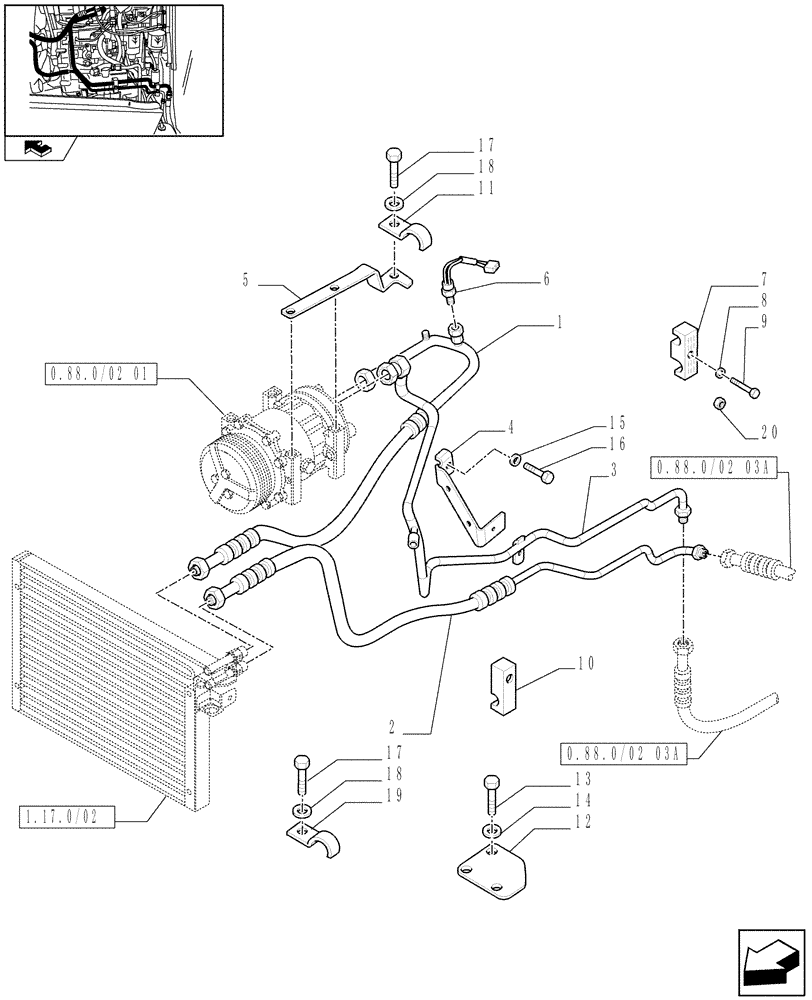

Запчасти Case IH FARMALL 95N (0.88.0/01[02]) - AIR CONDITIONING - PIPES AND RELATED PARTS (VAR.330641 / 743539; VAR.332641 / 743540) (01) - ENGINE

1

87718376

A/C HOSE

1шт.

2

84149328

FLEXIBLE HOSE

1шт.

3

87718374

RIGID TUBE

1шт.

4

87718378

BRACKET

1шт.

5

87718377

BRACKET

1шт.

6

87663969

PRESSURE SWITCH

1шт.

7

87571081

BRACKET

1шт.

8

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

9

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

1шт.

10

87326640

CLAMP,16mm ID

1шт.

11

10113301

RETAINER COLLAR,12mm, 7mm Bolt Hole, J Type

1шт.

12

87718379

BRACKET

, Serial Range: -C6833

1шт.

13

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

, Serial Range: -C6833

2шт.

14

11187974

BELLEVILLE WASHER,M13 Bolt Size x 28mm OD x 3.4mm Thk

, Serial Range: -C6833

2шт.

15

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

16

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

17

14305024

HEX SOC SCREW,M6 x 10mm, Cl 8.8, Full Thd

2шт.

18

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

19

10113201

RETAINER,10mm, 7mm Bolt Hole, J Type

1шт.

20

10720111

NUT,M6, Cl 8

1шт.
