Запчасти Case IH FARMALL 95N (0.88.0/01[01]) - AIR CONDITIONING UNIT - BELTS AND COMPRESSOR (VAR.330641 / 743539; VAR.332641 / 743540) (01) - ENGINE

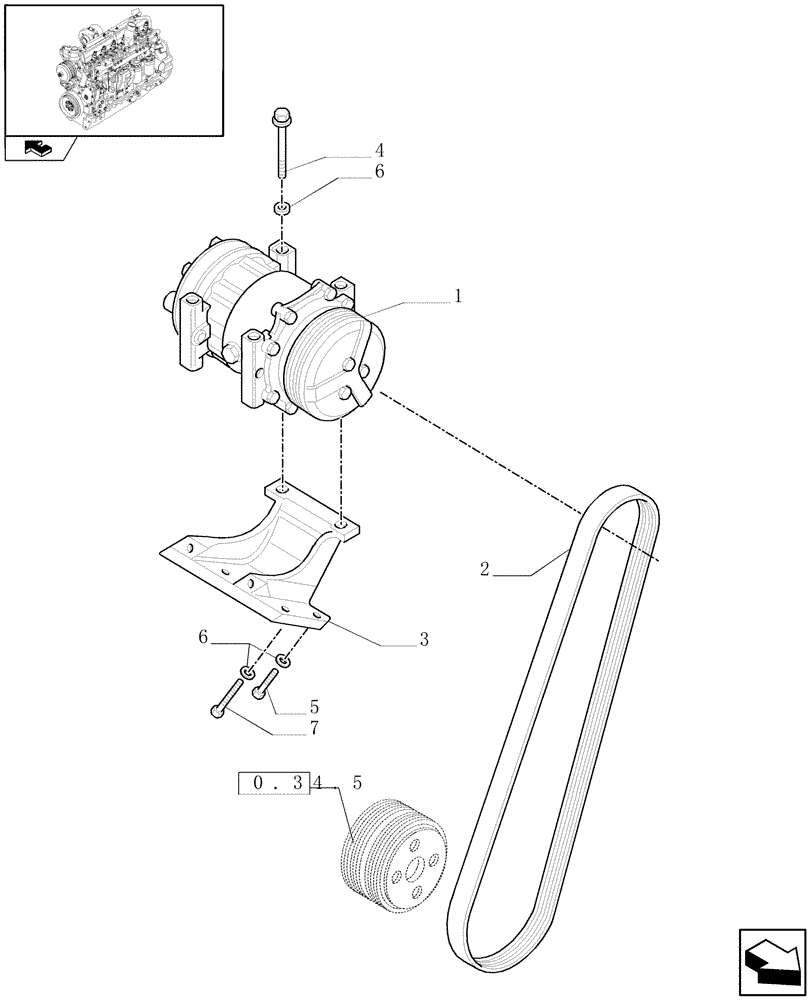

Схема запчастей Case IH FARMALL 95N - (0.88.0/01[01]) - AIR CONDITIONING UNIT - BELTS AND COMPRESSOR (VAR.330641 / 743539; VAR.332641 / 743540) (01) - ENGINE
7
0.34.5
1
4
6
home
6
2
3
5

Артикул

Название

Примечание

Количество

1

87519620

AIR COMPRESSOR

1шт.

1

87519620R

REMAN-A/C COMPRESSOR

Remanufactured Air Compressor

1шт.

1

87519620C

CORE-COMPRESSOR

Return Number, AIR COMPRESSOR

1шт.

2

87399981

BELT

1шт.

3

87380225

SUPPORT

1шт.

4

16046134

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

5

15213724

BOLT,Hex, M8 x 60mm, Cl 8.8, Full Thd

2шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

7шт.

7

16045421

BOLT,Hex, M8 x 110mm, Cl 8.8

1шт.

Выбрано товаров: 9
