(0.32.3/01) - PIPING - ENGINE COOLING SYSTEM

Запчасти Case IH FARMALL 95N (0.32.3/01) - PIPING - ENGINE COOLING SYSTEM (01) - ENGINE

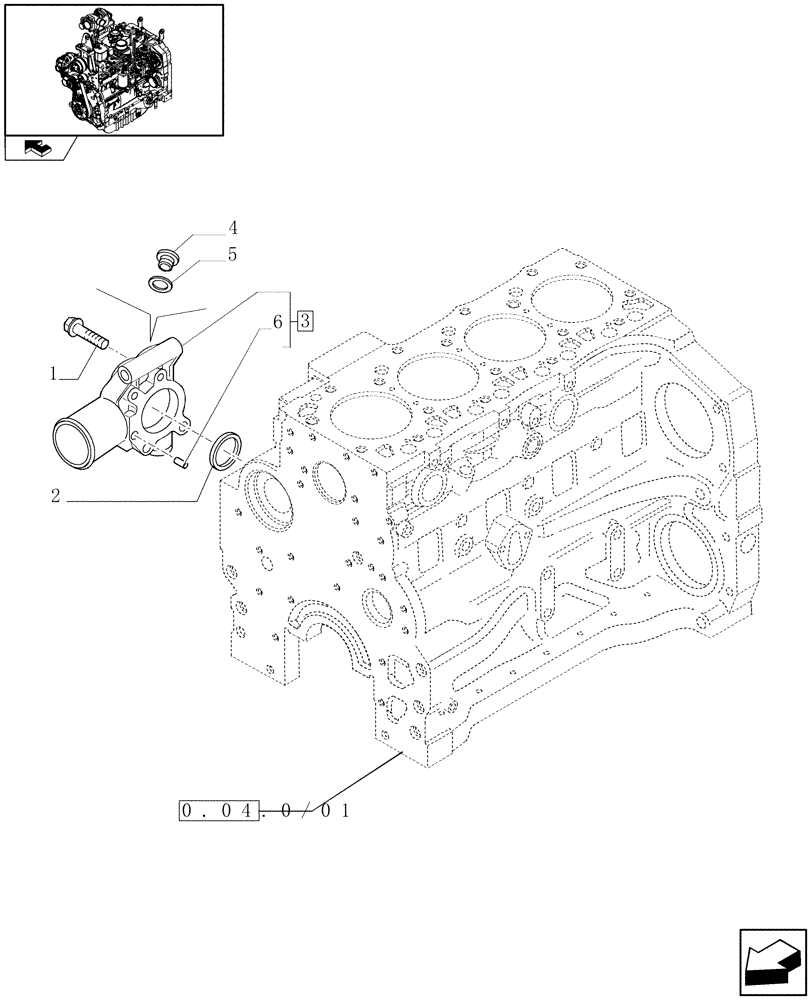

Схема запчастей Case IH FARMALL 95N - (0.32.3/01) - PIPING - ENGINE COOLING SYSTEM (01) - ENGINE
0.04.0/01
3
6
1
5
2
4
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2830622

SCREW

1шт.

1

4899144

SCREW,Hex Flg, M10 x 1.5 x 50

2шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

4895990

SUPPORT

ASSY

1шт.

4

4893206

PLUG,M18 x 1.5

M18 x 1.5

2шт.

5

4893207

SEALING WASHER,15.5mm ID x 26mm OD x 1.5mm Thk

18 mm

2шт.

6

2830894

DOWEL,.25" OD x .625" L

2шт.
