(0.14.6/02) - INJECTION EQUIPMENT - PIPING

Запчасти Case IH FARMALL 95N (0.14.6/02) - INJECTION EQUIPMENT - PIPING (01) - ENGINE

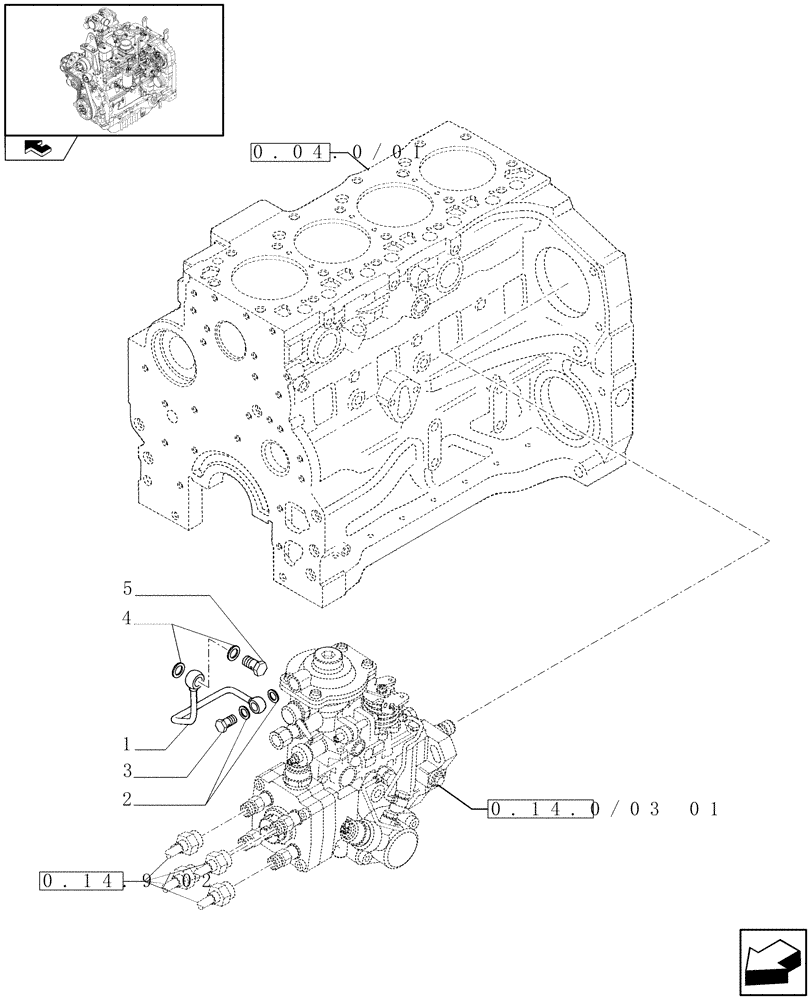

Схема запчастей Case IH FARMALL 95N - (0.14.6/02) - INJECTION EQUIPMENT - PIPING (01) - ENGINE
5
2
4
1
0.04.0/01
0.14.9/02
home
3
0.14.0/03 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4893081

TUBE

1шт.

2

4899010

SEALING WASHER,10.2mm ID x 13.4mm OD x 1mm Thk

10 x 1 x 13.5

1шт.

3

2830360

BANJO BOLT

1шт.

4

2830507

SEALING WASHER,7.8mm ID x 14mm OD x 1mm Thk

2шт.

5

4893096

BANJO BOLT,Hex, M10 x 1 x 19mm

1шт.
