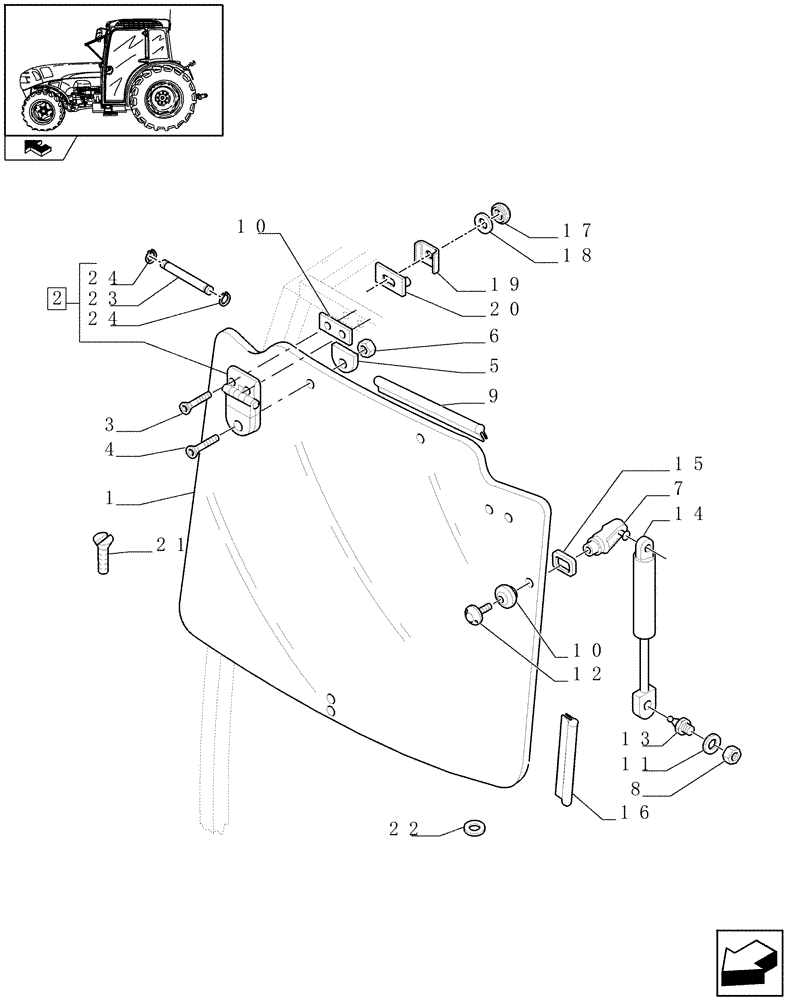

Запчасти Case IH FARMALL 95N (1.92.92[08]) - FRONT WINDOW AND RELEVANT PARTS (10) - OPERATORS PLATFORM/CAB

1

47127547

CAB GLASS ASSY

1шт.

2

5185205

HINGE

2шт.

3

5182236

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

M8 x 20

4шт.

4

5182238

HEX SOC SCREW,CSS, M8 x 1.25 x 35mm, Cl 8.8

M8 x 35

2шт.

5

44911859

SEAL,11mm ID x 26mm OD x 8.5mm Thk

2шт.

6

5182282

NUT,M8 x 1.25 x 10.6mm H, Cl 8

M8

2шт.

7

5147439

SUPPORT

2шт.

8

5182241

NUT,Hex, M8 x 1.25 x 8.5mm, Cl 04

M8

2шт.

9

87306874

SEAL,2896mm L

1шт.

10

44911521

COVER PLATE

2шт.

11

5182303

WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

M8 x 17

2шт.

12

5131923

CAP,M8 x 11,5mm L

2шт.

13

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN

2шт.

14

44910537

GAS STRUT

2шт.

15

5108658

GASKET,25mm x 32mm

2шт.

16

5167998

SEAL

2шт.

17

5120540

KNOB

4шт.

18

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

SEALRING

6шт.

19

5113395

SEAL, GLASS,Window, 30mm L

2шт.

20

5186866

PLATE

1шт.

21

13311217

SCREW,Pozidriv Oval Hd, Csk, M5 x 20mm, Cl 5.8, Full Thd

2шт.

22

12637878

SEALING WASHER,5.15mm ID x 11mm OD x 1mm Thk

2шт.

23

84155532

PIN,7.6mm OD x 87.8mm L

1шт.

24

11065676

SNAP RING,M8, Ext

2шт.
