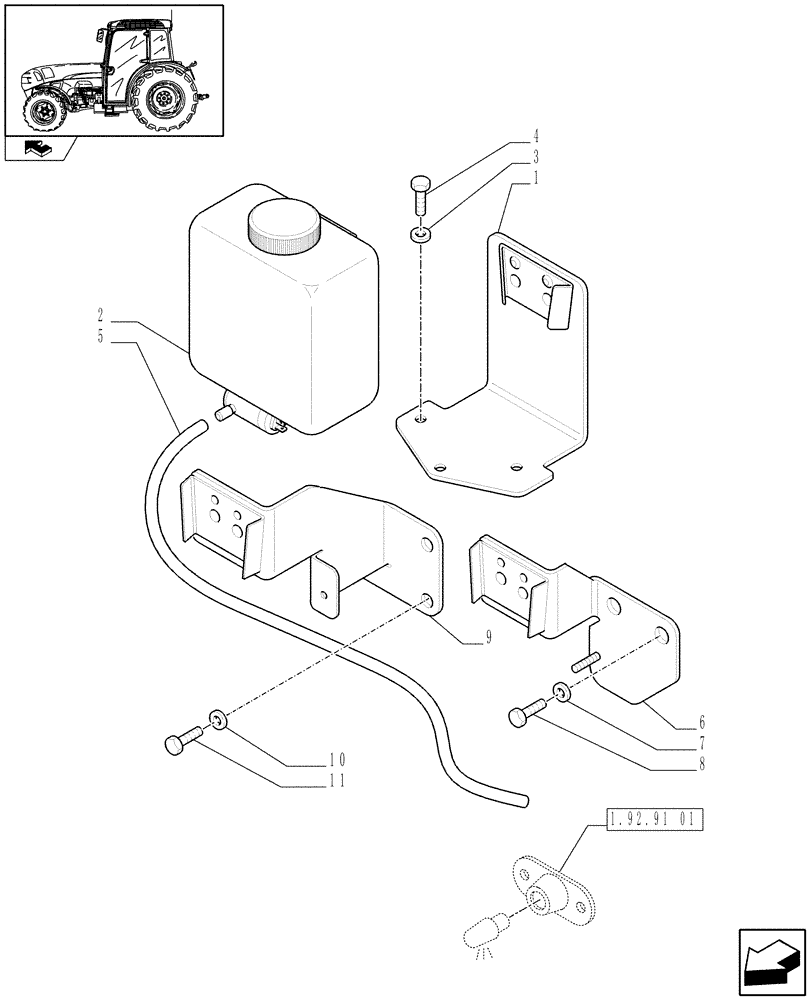

Запчасти Case IH FARMALL 95N (1.92.91[02]) - CAB - WINDSCREEN WIPER FRONT - TANK (10) - OPERATORS PLATFORM/CAB

1

87490546

BRACKET

, Serial Range: -C6833

1шт.

2

87490092

RESERVOIR, WINDSHIEL

1шт.

3

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

D=6, Serial Range: -C6833

3шт.

4

10902014

BOLT,Hex, M6 x 12mm, Cl 5.8, Full Thd

M6x12, Serial Range: -C6833

3шт.

5

19052983

HOSE

1шт.

6

84322817

BRACKET, SUPPORTING

, Start Serial: D6833

1шт.

Valid for 95 Models only

1шт.

7

11191074

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 2.6mm Thk

15 x 27 x 2.6 x 3.1, Start Serial: D6833

2шт.

Valid for 95 Models only

1шт.

8

16050724

BOLT,Hex, M14 x 2 x 20mm, Cl 8.8, Full Thd

M14 x 20, Start Serial: D6833

2шт.

Valid for 95 Models only

1шт.

9

84322836

BRACKET, SUPPORTING

, Start Serial: D6833

1шт.

Valid for 65, 75, 85 Models only

1шт.

10

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

13 x 24 x 3.2 x 3.8, Start Serial: D6833

3шт.

Valid for 65, 75, 85 Models only

1шт.

11

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

M12 x 25, Start Serial: D6833

3шт.

Valid for 65, 75, 85 Models only

1шт.

12

5136113

VALVE

1шт.
