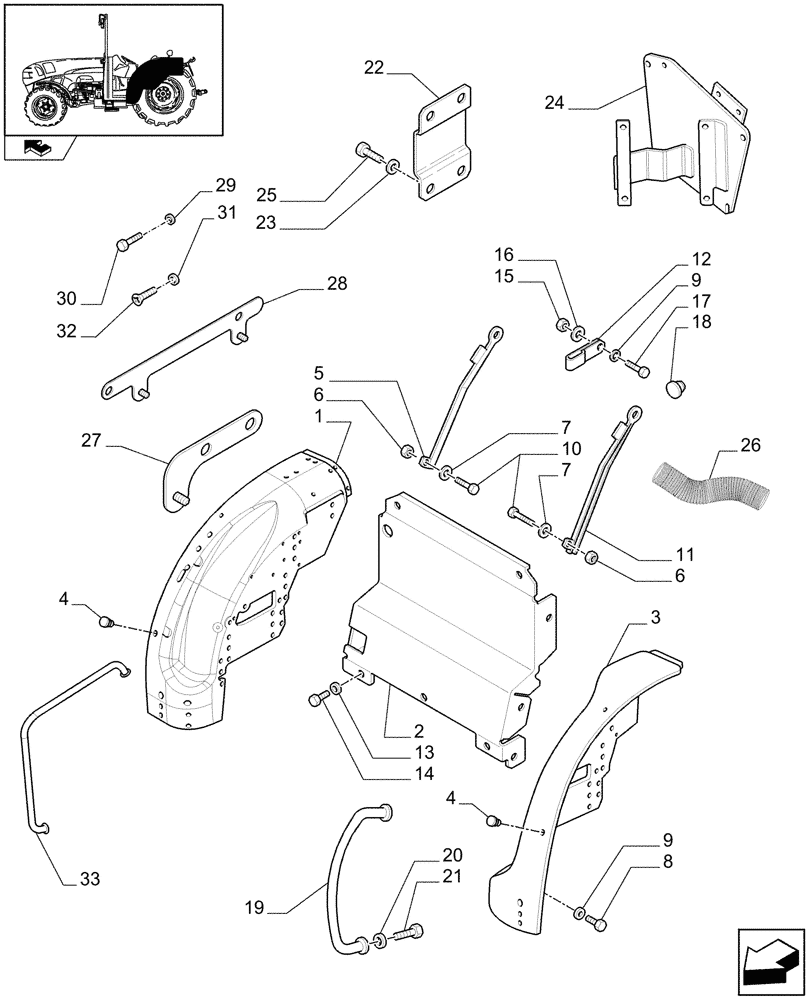

Запчасти Case IH FARMALL 95N (1.92.87[02A]) - MUDGUARDS AND FOOTBOARDS - L/CAB - D7426 (10) - OPERATORS PLATFORM/CAB

1

84471776

FENDER

RH

1шт.

1

84471773

FENDER

RH

1шт.

Rear Fenders in low Position with Extension, VAR.336871 (743531); VAR.337871 (743530)

1шт.

2

5188329

PARTITION

1шт.

65V Model, 75V Model, 85V Model, 95V Model

1шт.

2

5188336

PARTITION

1шт.

75N Model, 85N Model, 95N Model

1шт.

3

84471777

FENDER

LH

1шт.

3

84471774

FENDER

LH

1шт.

Rear Fenders in low Position with Extension, VAR.336871 (743531); VAR.337871 (743530)

1шт.

4

5120043

PLUG,12mm, Black

D=12

2шт.

5

5189164

SHIELD

RH

1шт.

75N Model, 85N Model, 95N Model

1шт.

5

84225833

COVER

RH

1шт.

65V Model, 75V Model, 85V Model, 95V Model

1шт.

6

12574215

NUT,M6 x 1, Cl 8

2шт.

7

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

8

14783714

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 16mm, Cl 5.8

14шт.

8

14783914

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

6шт.

9

11198574

BELLEVILLE WASHER,Belleville, M10.5

1шт.

Qty 2 for 65V, 75V, 85V, 95V Models; Qty 1 for 75N, 85N, 95N Models

1шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

11

5189165

SHIELD

LH

1шт.

75N Model, 85N Model, 95N Model

1шт.

11

84225844

COVER

LH

1шт.

65V Model, 75V Model, 85V Model, 95V Model

1шт.

12

5188267

COLLAR CLAMP,13mm ID x 20mm W

1шт.

Qty 2 for 65V, 75V, 85V, 95V Models; Qty 1 for 75N, 85N, 95N Models

1шт.

13

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

3шт.

14

5182280

SCREW,Hex, M8 x 16mm, Cl 8.8

3шт.

15

12164714

NUT,M10 x 1.25, Cl 8

1шт.

Qty 2 for 65V, 75V, 85V, 95V Models; Qty 1 for 75N, 85N, 95N Models

1шт.

16

13550404

WASHER,10.2mm ID x 20mm OD x 2mm Thk

D=10

1шт.

Qty 2 for 65V, 75V, 85V, 95V Models; Qty 1 for 75N, 85N, 95N Models

1шт.

17

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

Qty 2 for 65V, 75V, 85V, 95V Models; Qty 1 for 75N, 85N, 95N Models

1шт.

18

5125039

PLUG

D=8

2шт.

18

5155362

PLUG,17mm

D=17

1шт.

18

5155575

PLUG,10mm, Black

D=10

10шт.

18

5155613

PLUG,14mm , Black

D=14

28шт.

19

5187572

HANDRAIL

LH

1шт.

20

5185284

GASKET

2шт.

21

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

7шт.

22

87736894

REINFORCEMENT

1шт.

23

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

24

87396175

LOCKING TAB

1шт.

25

10902014

BOLT,Hex, M6 x 12mm, Cl 5.8, Full Thd

4шт.

26

84142879

FLEXIBLE HOSE,19.00 mm ID x 410.00 mm

1шт.

27

47382206

BRACKET

1шт.

28

47385920

BRACKET

1шт.

29

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

15шт.

30

12574521

LOCK NUT,M10 x 1.25, Cl 10

6шт.

31

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

1шт.

32

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

3шт.

33

84485422

HANDRAIL

RH

1шт.
