Запчасти Case IH FARMALL 95N (1.92.82/03[01]) - THREE REMOTE VALVES & FLOW-RATE REGULATOR FOR MDC - LEVER AND KNOB (VAR.331390 / 743525) (10) - OPERATORS PLATFORM/CAB

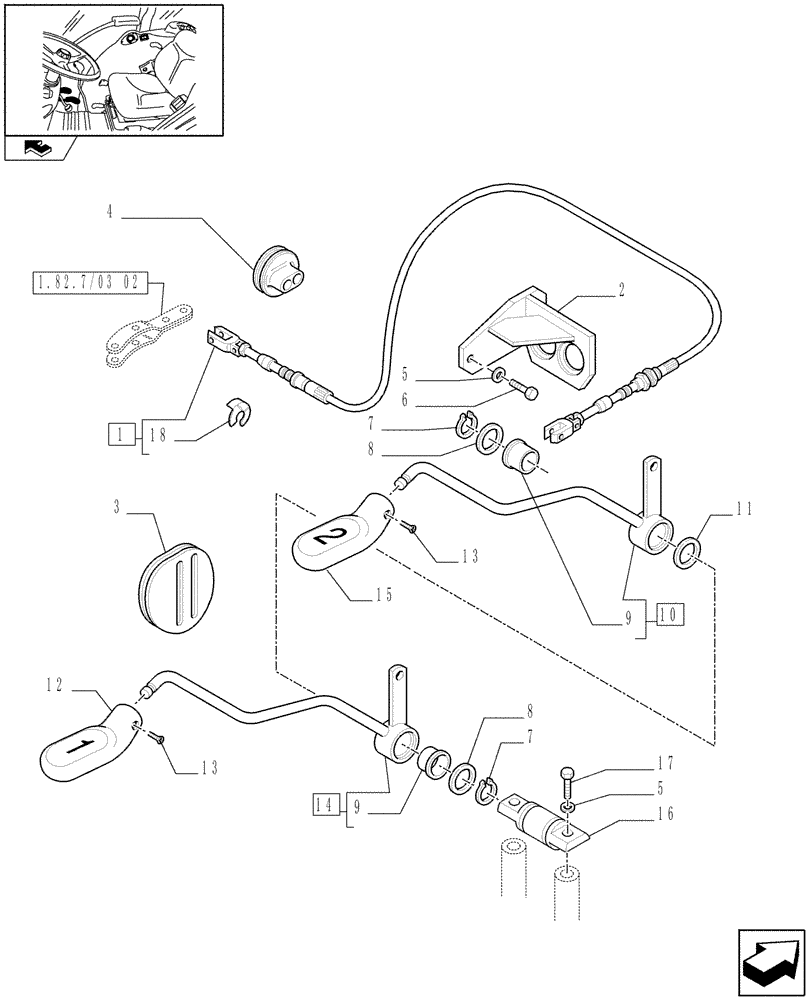

Схема запчастей Case IH FARMALL 95N - (1.92.82/03[01]) - THREE REMOTE VALVES & FLOW-RATE REGULATOR FOR MDC - LEVER AND KNOB (VAR.331390 / 743525) (10) - OPERATORS PLATFORM/CAB
7
7
4
8
11
12
5
5
1.82.7/03 02
home
18
10
9
8
2
17
1
13
14
15
16
3
9
13
6

Артикул

Название

Примечание

Количество

1

87744425

CABLE

2шт.

2

87487382

SUPPORT

1шт.

3

5188994

BELLOWS

1шт.

4

84131482

GROMMET

2шт.

5

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.

6

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

7

11066976

SNAP RING,M21, Ext

2шт.

8

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

2шт.

9

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

2шт.

10

5187543

LEVER

Assy., Incl. 9

1шт.

11

5154840

SHIM,21mm ID x 35mm OD x 2mm Thk

21 x 35

1шт.

12

47132372

KNOB

1шт.

13

13309177

SCREW,Pozidriv Oval Hd, Csk, M4 x 14mm, Full Thd

2шт.

14

5187576

LEVER

Assy., Incl. 9

1шт.

15

47132373

KNOB

1шт.

16

5133375

PIN,20mm OD x 100mm L

1шт.

17

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

18

84349366

CIRCLIP

D=22.7

1шт.

Выбрано товаров: 18
