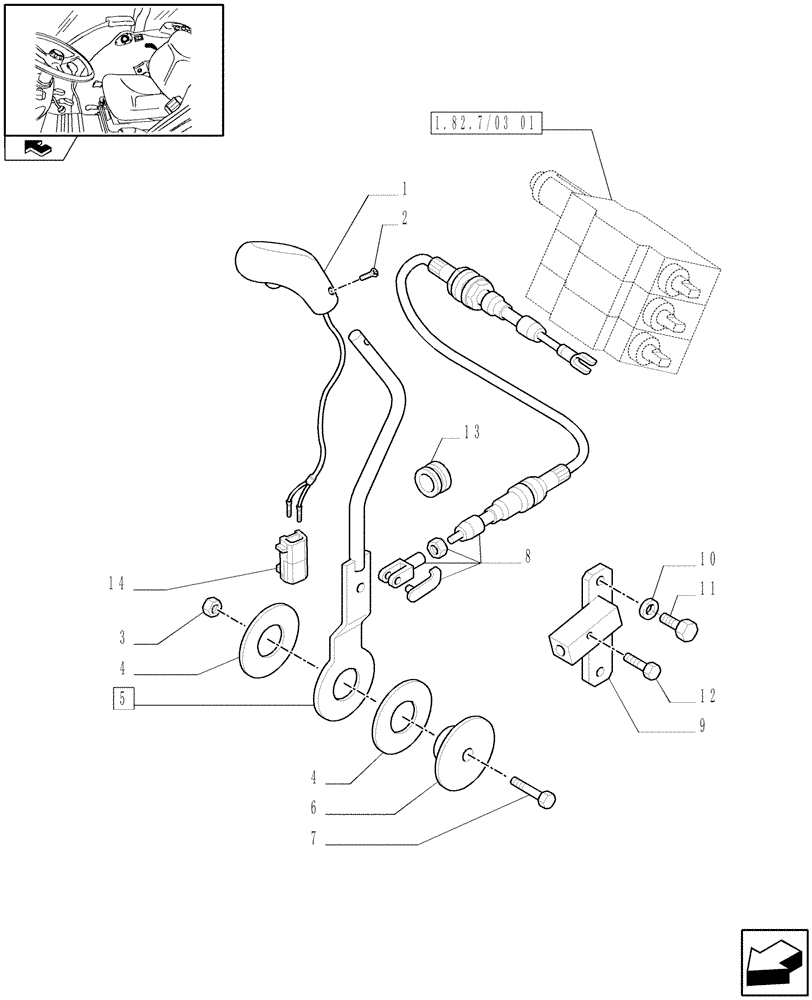

Запчасти Case IH FARMALL 95N (1.92.82/02[02]) - THREE REMOTE VALVES & FLOW-RATE REGULATOR FOR MDC - CONTROL LEVER (VAR.330390 / 743525; VAR.330391 / 743526) (10) - OPERATORS PLATFORM/CAB

1

82026097

KNOB

1шт.

2

13309177

SCREW,Pozidriv Oval Hd, Csk, M4 x 14mm, Full Thd

1шт.

3

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

4

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

2шт.

5

5190435

LEVER

1шт.

65V Model, 75V Model, 85V Model, 95V Model, W/CAB

1шт.

75N Model, 85N Model, 95N Model, W/CAB

1шт.

5

5188366

LEVER

Incl.1, 2, 14

1шт.

For L/CAB Models

1шт.

6

47126539

SPACER,8.5mm ID x 50mm OD x 11mm L

1шт.

7

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

2шт.

8

5199202

CABLE,645mm L

L=645MM.

1шт.

65V Model, 75V Model, 85V Model, 95V Model, W/CAB

1шт.

8

5195173

CABLE

L=645MM.

1шт.

For L/CAB Models

1шт.

75N Model, 85N Model, 95N Model, W/CAB

1шт.

9

5188363

BLOCK

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

2шт.

12

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

1шт.

13

10397580

INSULATING RING,16mm ID x 22mm Groove D x 29mm OD

16 x 2.5, W/CAB

1шт.

14

12484680

MULTIPOLE CONNECTOR,Female, 2 Pin

1шт.
