Запчасти Case IH FARMALL 95N (1.92.76[02]) - WORKLAMPS, TURN INDICATOR AND REAR REFLECTOR (10) - OPERATORS PLATFORM/CAB

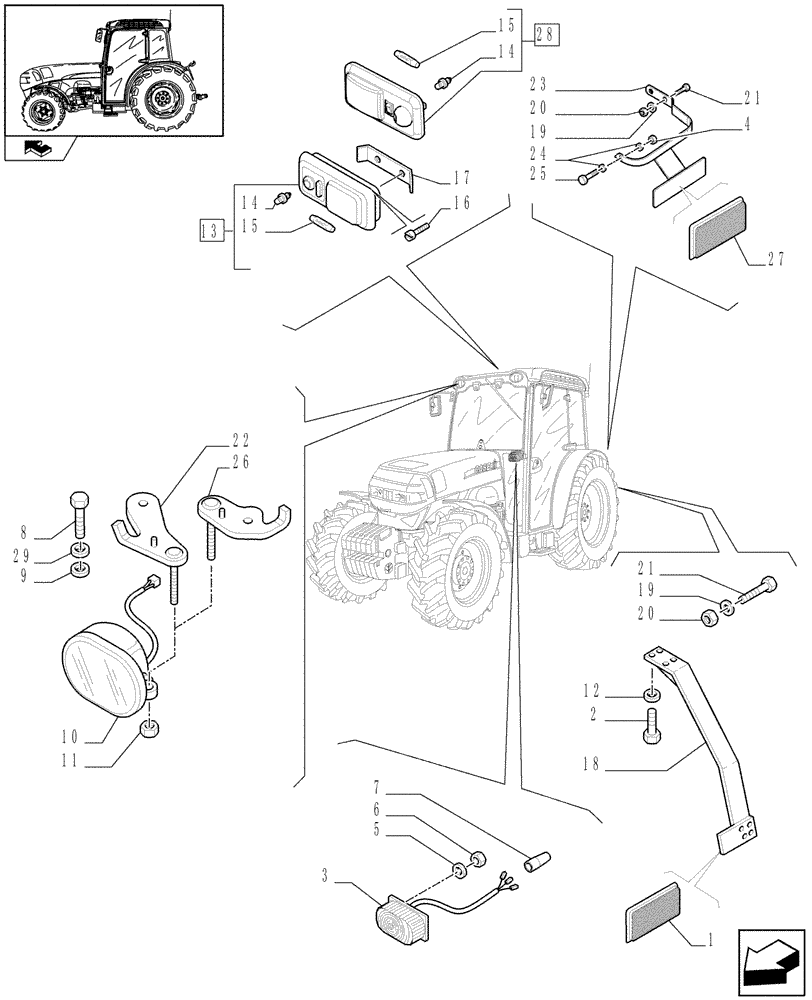

Схема запчастей Case IH FARMALL 95N - (1.92.76[02]) - WORKLAMPS, TURN INDICATOR AND REAR REFLECTOR (10) - OPERATORS PLATFORM/CAB
22
8
18
1
27
24
14
15
10
21
9
26
29
7
19
25
12
20
23
home
16
2
4
28
15
17
5
21
6
20
11
19
3
14
13

Артикул

Название

Примечание

Количество

1

82002957

REFLECTOR

1шт.

2

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

3

47133202

FRONT LAMP,12V, 21W, Amber/Clear

2шт.

3

47133204

FRONT LAMP,12V, 21W, Amber

LH

1шт.

Lighting System for NA Market, VAR.331760

1шт.

75N Model, 85N Model, 95N Model

1шт.

3

47133203

FRONT LAMP,Halogen, 12V, 21W, Amber Lens

RH

1шт.

Lighting System for NA Market, VAR.331760

1шт.

75N Model, 85N Model, 95N Model

1шт.

4

10794014

NUT,M4, Cl 8

2шт.

Lighting System for NA Market, VAR.331760

1шт.

75N Model, 85N Model, 95N Model

1шт.

5

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

4шт.

6

15896414

NUT,M5, Cl 8

4шт.

7

47135267

ELEC CONNECTOR,Female, 4 Cavities

2шт.

8

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

9

12625224

LOCK WASHER,8.15mm ID x 20mm OD x 1mm Thk

4шт.

10

84163076

LAMP

Front/Rear

4шт.

11

86528579

NUT,M8 x 1.25

4шт.

12

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

13

5141635

CEILING LAMP

ASSY, Serial Range: -C6945

1шт.

14

14144190

BULB,W5W, 12V, 5W

1шт.

15

10863090

BULB,C5W, 12V, 5W

1шт.

16

13272624

SCREW,Pozidriv Pan Hd, M4 x 25mm, Cl 8.8

2шт.

17

44911604

BRACKET

1шт.

18

5190719

SUPPORT

RH

1шт.

18

5190775

SUPPORT

LH

1шт.

Lights for RH Drive Markets - ISO, VAR.330760

1шт.

65V Model, 75V Model, 85V Model, 95V Model

1шт.

19

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

2шт.

20

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

21

15966217

SCREW,Pan Hd, Sq Nk, M6 x 18mm, Cl 5.8

1шт.

22

87741783

BRACKET

RH, Front

1шт.

22

87741784

BRACKET

LH, Front

1шт.

23

47123808

SUPPORT

RH

1шт.

Lighting System for NA Market, VAR.331760

1шт.

75N Model, 85N Model, 95N Model

1шт.

23

47123809

SUPPORT

LH

1шт.

Lighting System for NA Market, VAR.331760

1шт.

75N Model, 85N Model, 95N Model

1шт.

24

14446804

WASHER,3.6mm ID x 10mm OD x 0.6mm Thk

4шт.

Lighting System for NA Market, VAR.331760

1шт.

75N Model, 85N Model, 95N Model

1шт.

25

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

Lighting System for NA Market, VAR.331760

1шт.

75N Model, 85N Model, 95N Model

1шт.

26

87741785

BRACKET

RH, Rear

1шт.

26

87741786

BRACKET

LH, Rear

1шт.

27

5198365

REFLECTOR

2шт.

Lighting System for NA Market, VAR.331760

1шт.

75N Model, 85N Model, 95N Model

1шт.

28

84195893

CEILING LAMP

ASSY, Start Serial: D6845

1шт.

29

11197879

BELLEVILLE WASHER,8.4mm ID x 16mm OD x 2.2mm Thk

4шт.

Выбрано товаров: 53
