Запчасти Case IH FARMALL 95N (1.92.754/02) - FRONT AXLE ELECTRO-HYDRAULIC AND AUTOMATIC ENGAGEMENT - MAIN HARNESS (VAR.335307-338307 / 743512; VAR.336307) (10) - OPERATORS PLATFORM/CAB

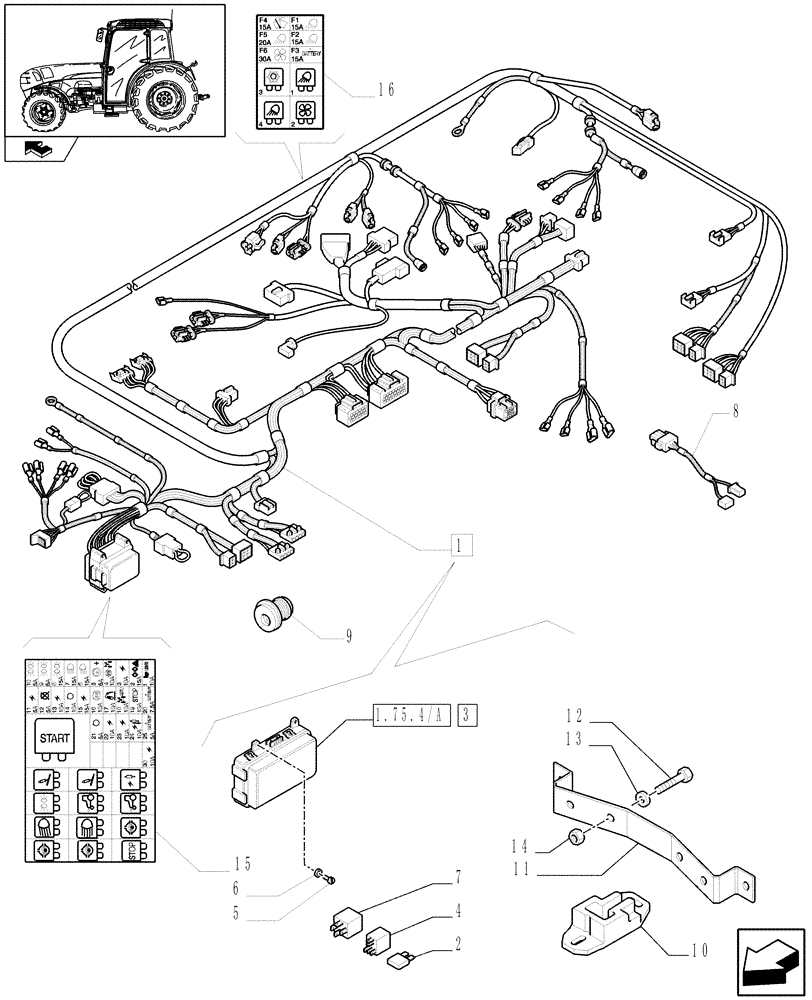

Схема запчастей Case IH FARMALL 95N - (1.92.754/02) - FRONT AXLE ELECTRO-HYDRAULIC AND AUTOMATIC ENGAGEMENT - MAIN HARNESS (VAR.335307-338307 / 743512; VAR.336307) (10) - OPERATORS PLATFORM/CAB
6
3
13
5
16
4
15
home
1.75.4/a
7
2
10
14
11
9
1
12
8

Артикул

Название

Примечание

Количество

1

87625169

ELECTRIC CABLE

, Serial Range: -C6512

1шт.

Electro-Hydraulic Engagement and Automatic 4WD with MDC, VAR.335307

1шт.

1

87621317

ELECTRIC CABLE

, Serial Range: -C6512

1шт.

Electro-Hydraulic Engagement with EDC, VAR.336307-338307

1шт.

1

84283011

ELECTRIC CABLE

Main, Serial Range: D6512-C7061

1шт.

Electro-Hydraulic Engagement and Automatic 4WD with MDC, VAR.335307

1шт.

1

84283012

ELECTRIC CABLE

Main, Serial Range: D6512-C7061

1шт.

Electro-Hydraulic Engagement with EDC, VAR.336307-338307

1шт.

1

84481806

WIRE HARNESS

Main, Start Serial: D7061

1шт.

Electro-Hydraulic Engagement and Automatic 4WD with MDC, VAR.335307

1шт.

1

84482138

WIRE HARNESS

Main, Start Serial: D7061

1шт.

Electro-Hydraulic Engagement with EDC, VAR.336307-338307

1шт.

2

10395890

FUSE,5A, Mini, Beige

5A

1шт.

2

87522595

FUSE,7.5A, Mini, Brown

7.5A

1шт.

2

87522597

FUSE,10A, Mini, Red

10A

1шт.

2

87524877

FUSE,15A, Mini, Blue

15A

1шт.

2

10401190

FUSE,20A, Mini, Yellow

20A

1шт.

2

10401290

FUSE,25 amp Mini

25A

1шт.

2

10402190

FUSE,30A, Mini

30A

1шт.

3

5198692

FUSE HOLDER

1шт.

4

47127781

RELAY,12V, 20A, Micro, N.O.

NO, 20A

1шт.

4

47127782

RELAY,12V, 10A, Micro, N.C.

CO, 20A

1шт.

5

13276214

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

4шт.

6

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

7

83989947

RELAY,70A

70A

1шт.

8

87319903

ELECTRIC CABLE

1шт.

Electro-Hydraulic 4WD Extension Harness

1шт.

8

87319904

ELECTRIC CABLE

1шт.

Electro-Hydraulic 4WD Extension Harness

1шт.

Electro-Hydraulic Engagement and Automatic 4WD, VAR.335307-338307

1шт.

9

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

10

87543128

HOSE CLIP

2шт.

11

84146231

BRACKET

1шт.

12

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

4шт.

13

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

4шт.

14

10725011

THIN NUT,Thin, M5 x .8, Cl 04

4шт.

15

87705738

DECAL

1шт.

16

87705790

DECAL

1шт.

Выбрано товаров: 38
