Запчасти Case IH FARMALL 95N (1.92.754/01) - 2WD MAIN HARNESS - W/CAB (10) - OPERATORS PLATFORM/CAB

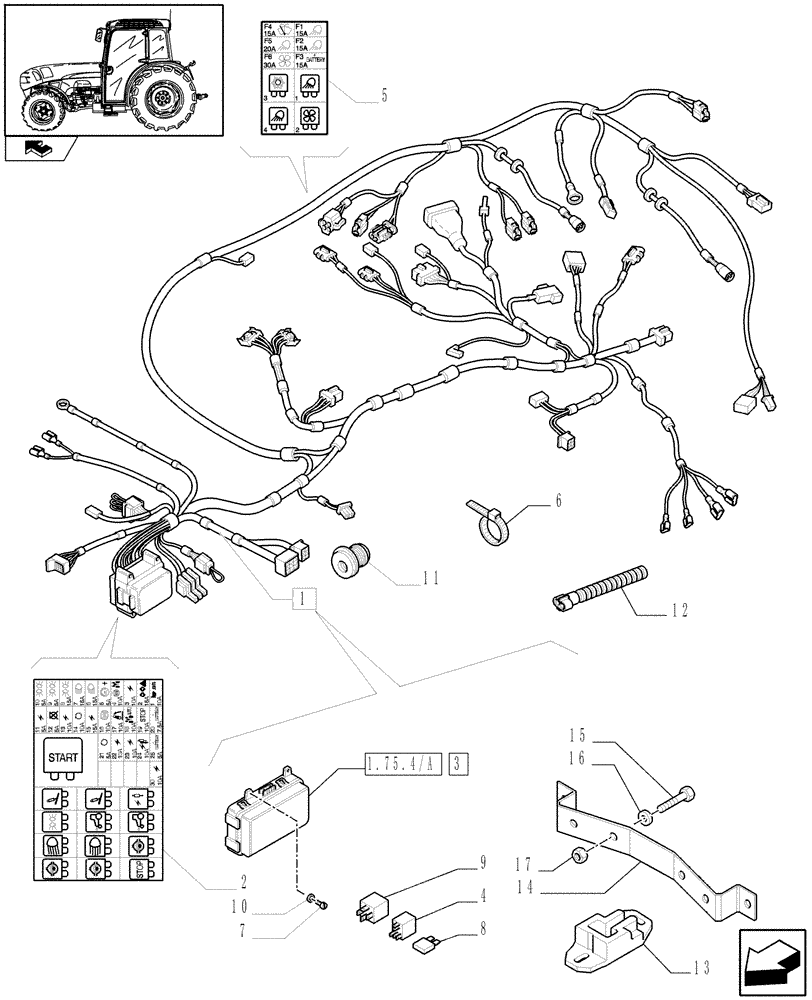

Схема запчастей Case IH FARMALL 95N - (1.92.754/01) - 2WD MAIN HARNESS - W/CAB (10) - OPERATORS PLATFORM/CAB
16
14
5
1
12
10
9
home
3
1.75.4/a
15
1
7
13
8
17
1
4
2
6

Артикул

Название

Примечание

Количество

1

87600377

ELECTRIC CABLE

Main, Serial Range: -C6512

1шт.

For Hydraulic Diff. Lock - 2WD

1шт.

1

87599524

ELECTRIC CABLE

Main, Serial Range: -C6512

1шт.

For Mechanical Diff. Lock - 2WD

1шт.

75N Model, 85N Model, 95N Model

1шт.

1

84283008

ELECTRIC CABLE

Main, Serial Range: D6512-C7061

1шт.

For Mechanical Diff. Lock - 2WD

1шт.

75N Model, 85N Model, 95N Model

1шт.

1

84283010

ELECTRIC CABLE

Main, Serial Range: D6512-C7061

1шт.

For Hydraulic Diff. Lock - 2WD

1шт.

1

84481248

WIRE HARNESS

Main, Start Serial: D7061

1шт.

75N Model, 85N Model, 95N Model

1шт.

For Mechanical Diff. Lock - 2WD

1шт.

1

84481774

WIRE HARNESS

Main, Start Serial: D7061

1шт.

For Hydraulic Diff. Lock - 2WD

1шт.

2

87705738

DECAL

1шт.

3

5198692

FUSE HOLDER

1шт.

4

47127781

RELAY,12V, 20A, Micro, N.O.

NO, 20A

1шт.

4

82023238

RELAY,12V, 20A

NC, 20A

1шт.

5

87705790

DECAL

1шт.

6

85805383

CABLE TIE

CABLE STRAP

28шт.

7

13276211

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

4шт.

8

10395890

FUSE,5A, Mini, Beige

5A

1шт.

8

87522595

FUSE,7.5A, Mini, Brown

7.5A

1шт.

8

87522597

FUSE,10A, Mini, Red

10A

1шт.

8

87524877

FUSE,15A, Mini, Blue

15A

1шт.

8

10401190

FUSE,20A, Mini, Yellow

20A

1шт.

8

10401290

FUSE,25 amp Mini

25A

1шт.

8

10402190

FUSE,30A, Mini

30A

1шт.

9

83989947

RELAY,70A

70A

1шт.

10

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

11

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

12

87345428

TERMINAL CONNECTOR,120Ohm/0.5W, 42 Pins

CAN Bus Terminator

1шт.

13

87543128

HOSE CLIP

2шт.

14

84146231

BRACKET

1шт.

15

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

4шт.

16

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

4шт.

17

10725011

THIN NUT,Thin, M5 x .8, Cl 04

4шт.

Выбрано товаров: 38
