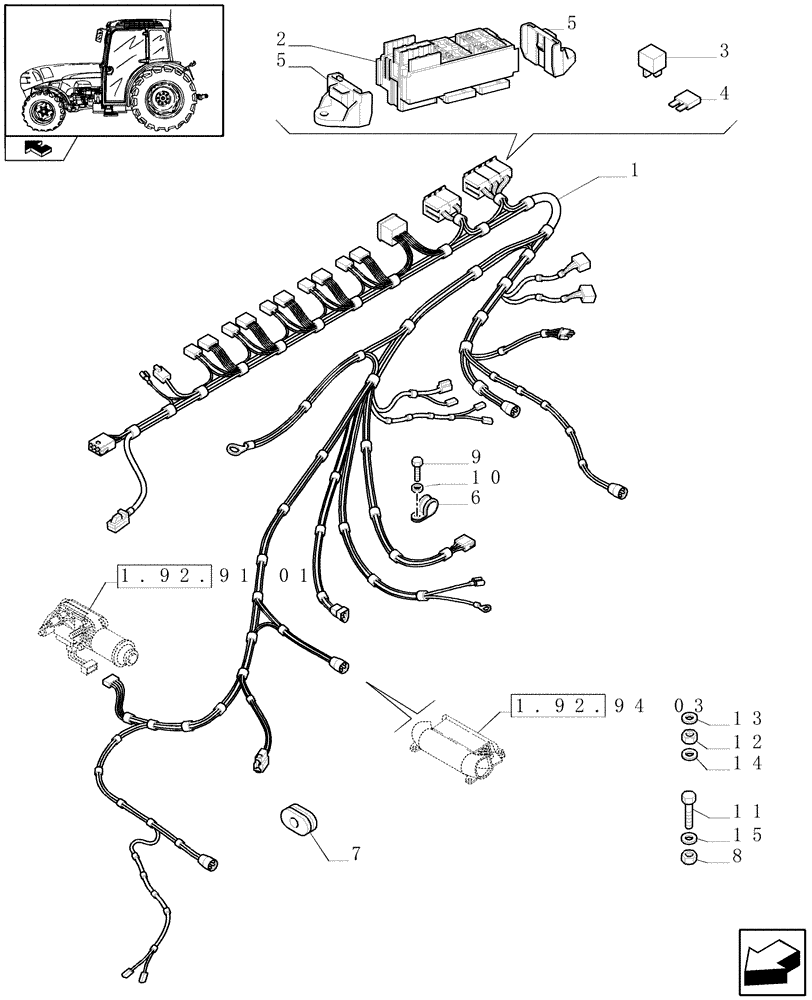

Запчасти Case IH FARMALL 95N (1.92.754[02]) - AIR CONDITIONED CAB CABLE (10) - OPERATORS PLATFORM/CAB

1

87630142

ELECTRIC CABLE

CAB

1шт.

2

87588032

FUSE BOX

1шт.

3

47127781

RELAY,12V, 20A, Micro, N.O.

12V-20A

3шт.

3

87604032

RELAY,12V, 30A, Micro

12V-30A

1шт.

4

10395890

FUSE,5A, Mini, Beige

5A

1шт.

4

87522595

FUSE,7.5A, Mini, Brown

7.5A

1шт.

4

87522597

FUSE,10A, Mini, Red

10A

1шт.

4

87524877

FUSE,15A, Mini, Blue

15A

1шт.

4

10401190

FUSE,20A, Mini, Yellow

20A

1шт.

4

10401290

FUSE,25 amp Mini

25A

1шт.

4

10402190

FUSE,30A, Mini

30A

1шт.

5

87588035

BRACKET

2шт.

6

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

2шт.

7

87565310

GROMMET,8mm ID x 28mm x 38mm x 10mm

4шт.

8

15896414

NUT,M5, Cl 8

2шт.

9

13279211

SCREW,Pozidriv Pan Hd, M8 x 16mm, Cl 5.8, Full Thd

4шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

11

13273921

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

3шт.

12

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

12

16100815

NUT,M8 x 1.25, Cl 8

1шт.

13

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

13

12647824

WASHER,6.15mm ID x 16mm OD x 3mm Thk

1шт.

14

10615774

WASHER

2шт.

15

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

3шт.
