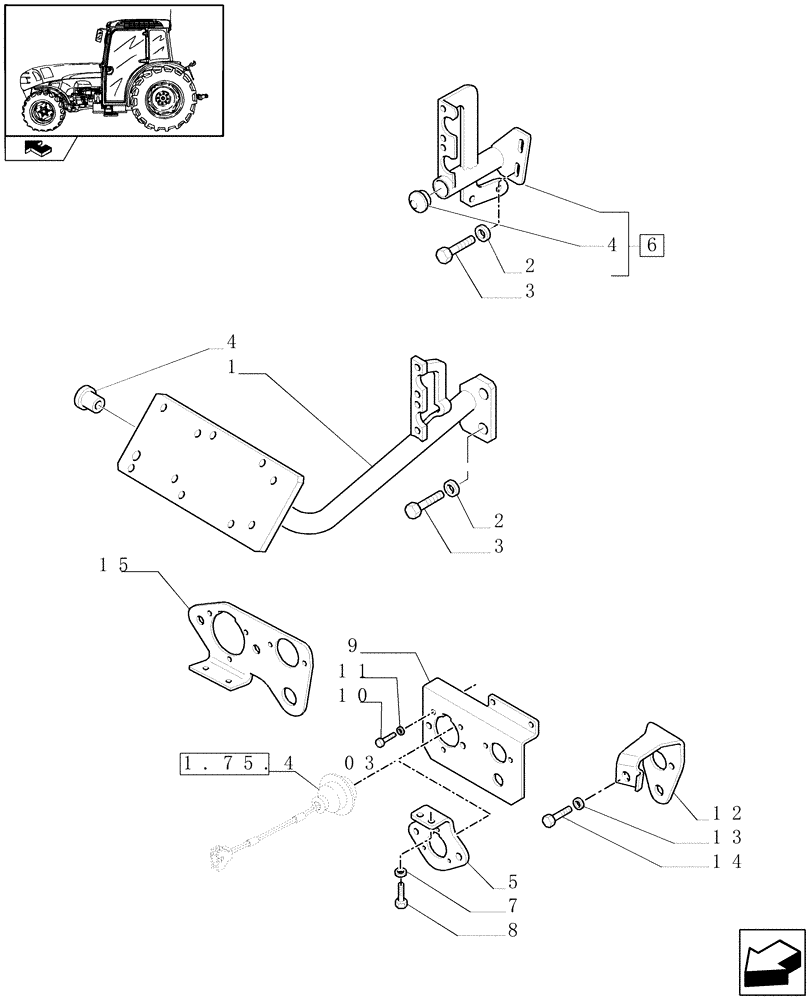

Запчасти Case IH FARMALL 95N (1.92.75[02]) - LICENSE PLATE SUPPORT AND 7-PIN TRAILER CONNECTOR BRACKET (10) - OPERATORS PLATFORM/CAB

1

5182208

SUPPORT

Incl. 4, W/CAB

1шт.

2

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

2

11194079

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

2шт.

3

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

4

5176369

PLUG,21.2mm OD

1шт.

5

87556174

BRACKET

W/CAB, Serial Range: -C6512

1шт.

6

5182215

SUPPORT

W/CAB

1шт.

NA Package, VAR.330007 (75N Model, 85N Model, 95N Model)

1шт.

7

11194373

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.4mm Thk

2шт.

8

10902114

BOLT,Hex, M6 x 14mm, Cl 5.8, Full Thd

2шт.

9

5189394

BRACKET

L/CAB

1шт.

10

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

11

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

12

87564782

BRACKET

1шт.

NA Package, VAR.332004 (75N Model, 85N Model, 95N Model)

1шт.

13

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

14

15013424

BOLT,Hex, M16 x 25mm, Full Thd

1шт.

15

84300636

BRACKET

, Start Serial: D6512

1шт.
