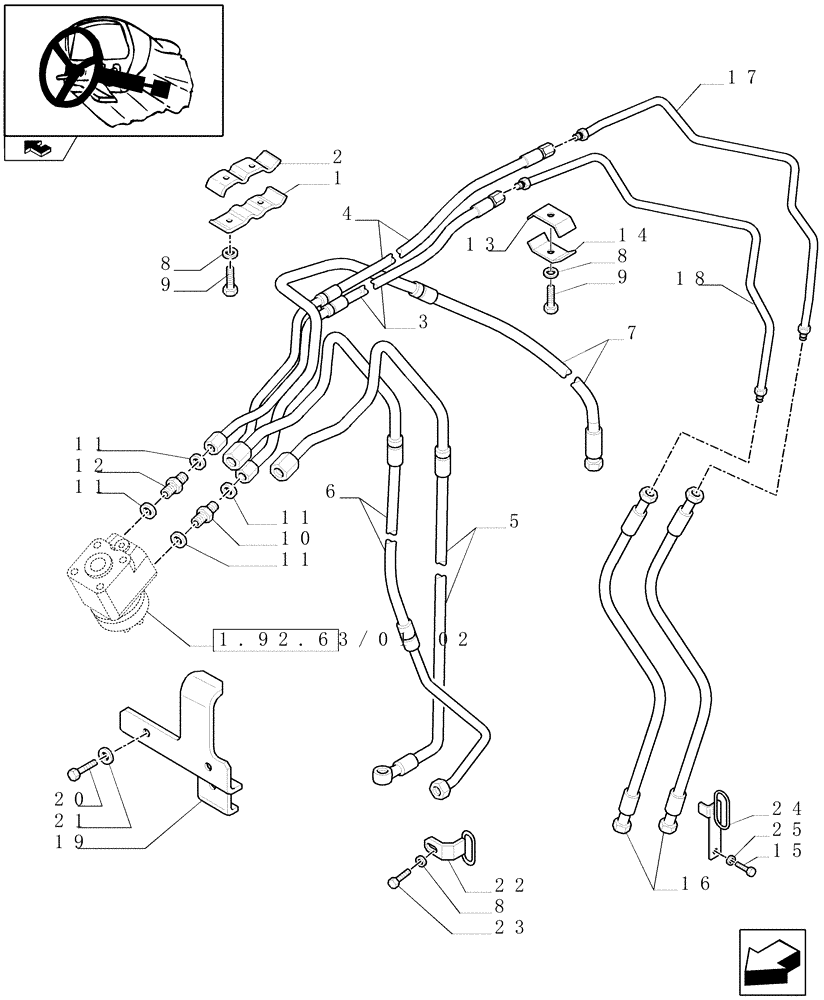

Запчасти Case IH FARMALL 95N (1.92.63/01[03]) - POWER STEERING PIPES - C6440 (10) - OPERATORS PLATFORM/CAB

1

87558463

RETAINER COLLAR,2x6mm ID x 4mm Thk

1шт.

2

87558474

RETAINER COLLAR,2x6.5mm ID

1шт.

3

87590889

FLEXIBLE HOSE

LH

1шт.

4

87590893

RIGID TUBE,12 mm OD

RH

1шт.

5

87587338

RIGID TUBE,16 mm OD

1шт.

For Hydraulic Transmission

1шт.

6

87587244

FLEXIBLE HOSE

, Serial Range: -C6437

1шт.

For Mechanical Transmission

1шт.

6

84188829

HYD TUBE,16 mm OD

, Start Serial: D6437

1шт.

For Mechanical Transmission

1шт.

7

87695566

RIGID TUBE,12.7 mm ID x 385, 210.9 mm L

1шт.

To HPL Pump

1шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

5шт.

9

10902524

SCREW,Hex, M6 x 22mm, Cl 8.8

4шт.

10

5158807

HYD CONNECTOR

7/8"-14 x 1/2" Gas

2шт.

11

5170555

WASHER

1/2"

4шт.

12

5174421

HYD CONNECTOR

3/4"-16 x 1/2" Gas

2шт.

13

5193549

CLAMP,6mm ID x 25mm Thk x 32mm L

Front

1шт.

14

5193550

CLAMP,6.5mm ID

Rear

2шт.

15

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

5191910

FLEXIBLE HOSE

705MM, T4050N

2шт.

To Steering Cylinder

1шт.

17

84159264

RIGID TUBE,12 mm OD

RH

1шт.

18

84159268

RIGID TUBE,12 mm OD

LH

1шт.

19

87572812

BRACKET

1шт.

20

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

21

11198574

BELLEVILLE WASHER,Belleville, M10.5

1шт.

22

84146398

BRACKET

1шт.

23

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

24

5192260

CIRCLIP

1шт.

25

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.
