Запчасти Case IH FARMALL 95N (1.92.34[02]) - REVERSER CONTROL LEVER - W/CAB - C6359 (10) - OPERATORS PLATFORM/CAB

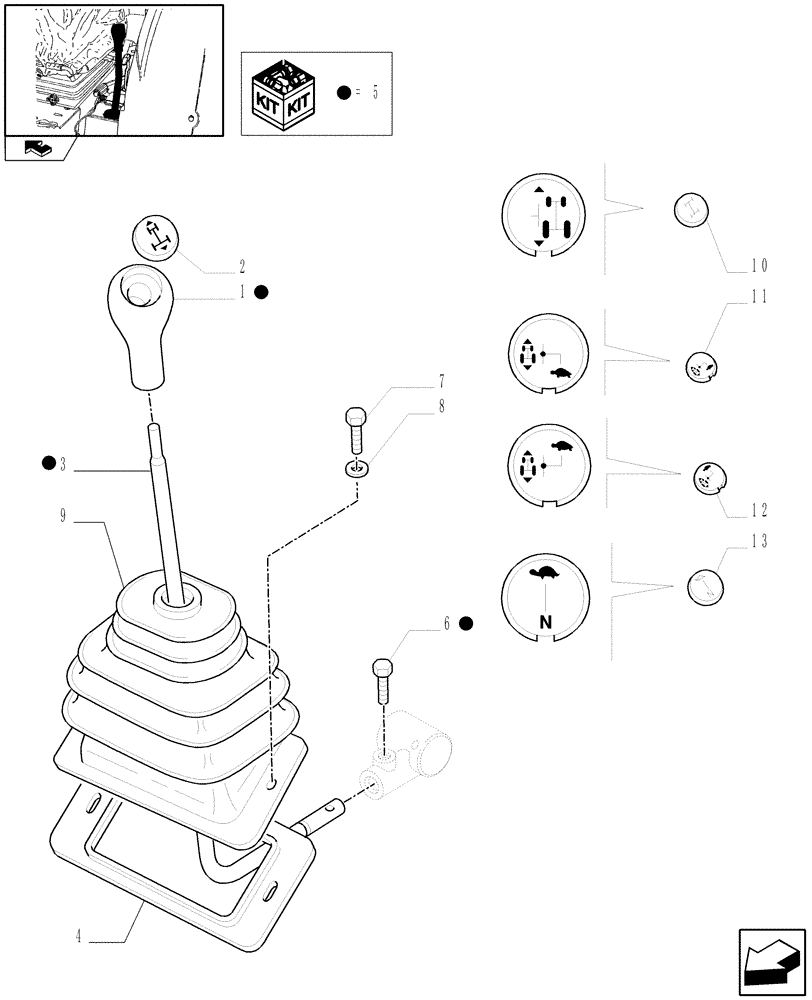

Схема запчастей Case IH FARMALL 95N - (1.92.34[02]) - REVERSER CONTROL LEVER - W/CAB - C6359 (10) - OPERATORS PLATFORM/CAB
9
5
13
4
5
11
home
3
8
5
12
7
5
6
2
10
1

Артикул

Название

Примечание

Количество

1

5183532

KNOB

1шт.

2

5172691

CUP COVER

1шт.

For Mechanical Transmission - ISO

1шт.

3

5188058

LEVER

1шт.

65V Model, 75V Model, 85V Model, 95V Model

1шт.

3

5188993

LEVER

1шт.

75N Model, 85N Model, 95N Model

1шт.

4

5188429

CAPPING

4MM

1шт.

4

5190510

FRAME

7MM

1шт.

5

5189597

LEVER

1шт.

75N Model, 85N Model, 95N Model

1шт.

5

5189596

LEVER

1шт.

65V Model, 75V Model, 85V Model, 95V Model

1шт.

5

5192940

LEVER

Incl.1, 6

1шт.

Creeper 44X16 for HI-LO and Power Shuttle, VAR.335111

1шт.

6

44013453

SCREW,Hex, M12 x 1.25 x 33mm

1шт.

7

13283714

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd, Cone Pt

2шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

For Splitter

2шт.

9

87528777

BELLOWS

1шт.

10

5178229

CUP COVER

1шт.

For Mechanical Transmission - NA

1шт.

75N Model, 85N Model, 95N Model

1шт.

11

5172668

CUP COVER

1шт.

For Splitter

1шт.

12

5172667

CUP COVER

1шт.

Creeper 28X16 for 16X16 Mechanical Transmission - ISO, VAR.330111

1шт.

13

5173921

CUP COVER

1шт.

Creeper 44X16 for HI-LO and Power Shuttle, VAR.335111

1шт.

Выбрано товаров: 28
