Запчасти Case IH FARMALL 95N (0.06.0/01) - CYLINDER HEAD (01) - ENGINE

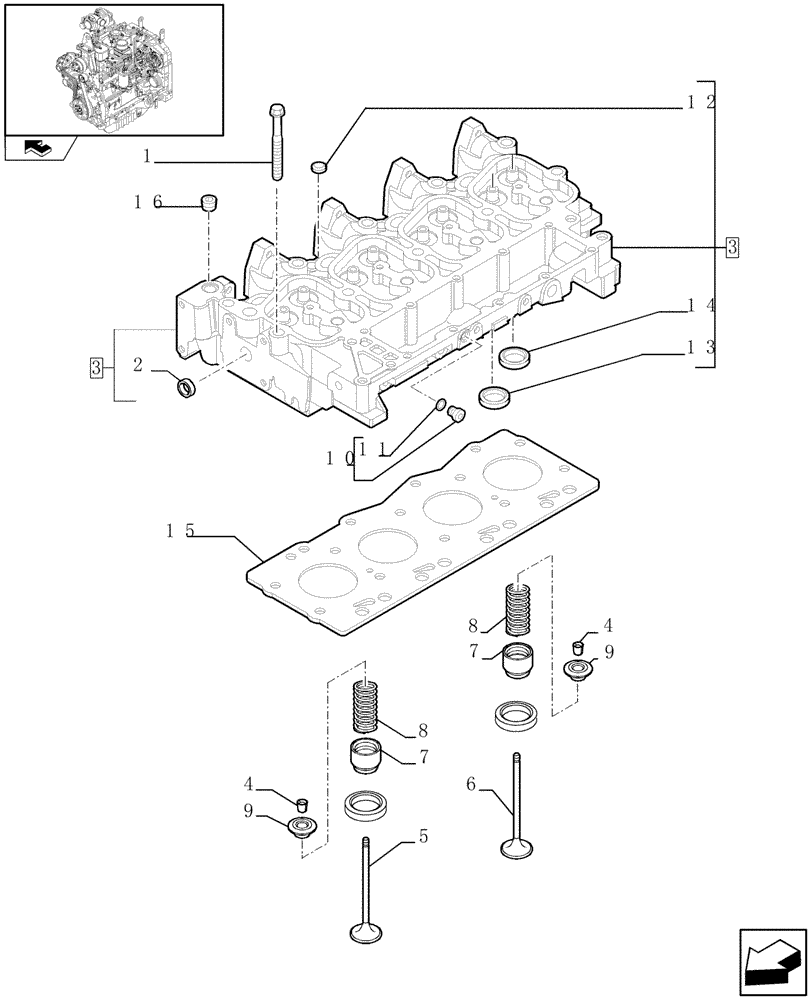

Схема запчастей Case IH FARMALL 95N - (0.06.0/01) - CYLINDER HEAD (01) - ENGINE
14
12
13
3
15
6
10
16
5
11
7
1
8
9
3
8
home
9
4
7
4
2

Артикул

Название

Примечание

Количество

1

4892861

CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73

4шт.

1

4892859

BOLT,Flng, M12 x 1.75 x 143mm

10шт.

2

4895085

EXPANSION PLUG,25.74mm

OD

1шт.

3

2856016

CYLINDER HEAD,4 Cylinders

ASSY

1шт.

87536218

CYLINDER HEAD,4 Cylinders

ASSY, Incl. 3,4,5,6,7,8,9,10

1шт.

87536218R

REMAN-CYLINDER HEAD

FARMALL 95N TRACTOR (12/08-)

1шт.

87536218C

CORE-CYLINDER HEAD

Return Number

1шт.

4

4895183

COLLET

16шт.

5

4895188

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

6

4895187

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

7

4895347

SEAL

8шт.

8

4895215

VALVE SPRING,Compression, 32.8mm OD x 63.5 mmL

8шт.

9

4895184

RETAINER,34mm OD, 10.63mm ID, 14.5mm L

8шт.

10

4899009

PLUG,M10 x1

Assy

1шт.

11

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

12

4895179

EXPANSION PLUG,M20.93

3шт.

13

4897178

VALVE SEAT,36mm ID x 43mm OD x 6.7mm L

Exhaust

4шт.

14

4897179

VALVE SEAT,38 mmID x 47mm OD x 6.9mm L

Intake

4шт.

15

2830919

CYLINDER HEAD GASKET,1.4mm Thk

1шт.

15

2830920

CYLINDER HEAD GASKET,1.15mm Thk

1шт.

16

4895078

PIPE PLUG,1/2"-14

5шт.

Выбрано товаров: 21
