(1.92.29/03[01]) - 32X16 HI-LO AND POWER SHUTTLE TRASMISSION WITH POWER CLUTCH - L/CAB (VAR.330273)

Запчасти Case IH FARMALL 95N (1.92.29/03[01]) - 32X16 HI-LO AND POWER SHUTTLE TRASMISSION WITH POWER CLUTCH - L/CAB (VAR.330273) (10) - OPERATORS PLATFORM/CAB

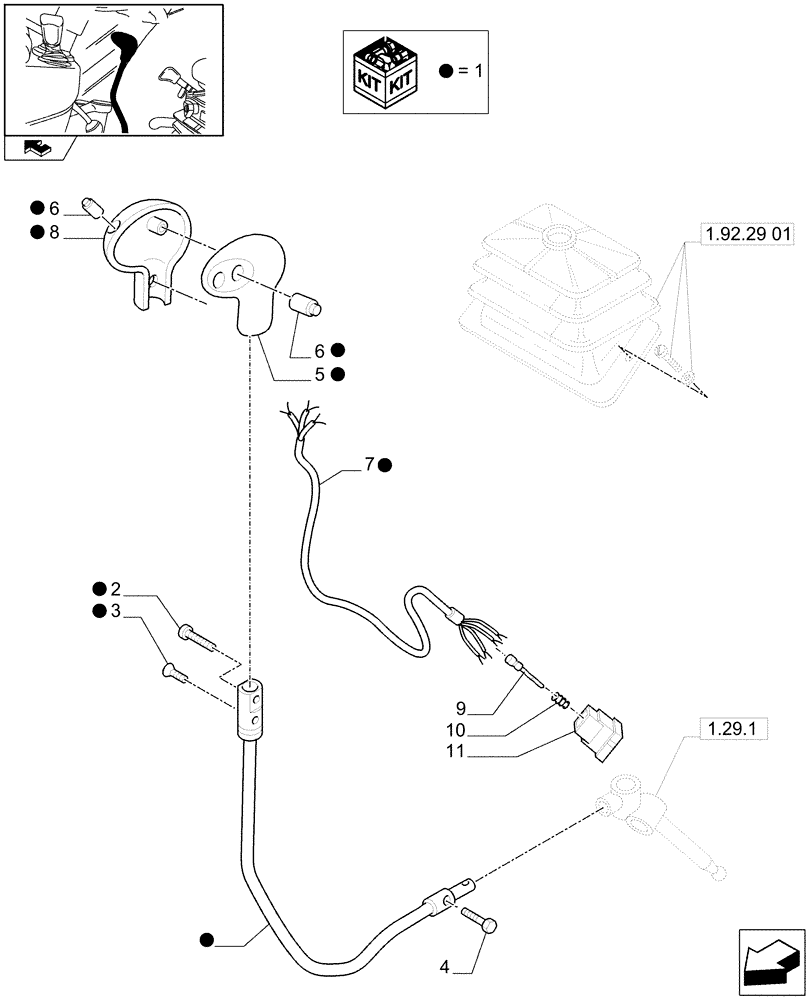

Схема запчастей Case IH FARMALL 95N - (1.92.29/03[01]) - 32X16 HI-LO AND POWER SHUTTLE TRASMISSION WITH POWER CLUTCH - L/CAB (VAR.330273) (10) - OPERATORS PLATFORM/CAB
1
1
4
2
1.29.1
home
1
1
6
3
1
9
1
1
1.92.29 01
10
7
5
8
6
1
1
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87471693

LEVER

ASSY

1шт.

2

13274877

SCREW,Phil Pan Hd, M5 x 30mm, SST

1шт.

3

13310777

SCREW,Pozidriv Oval Hd, Csk, M5 x 10mm, Full Thd, SST

1шт.

4

44013453

SCREW,Hex, M12 x 1.25 x 33mm

1шт.

5

82006429

KNOB

Half, LH

1шт.

6

87398154

SWITCH

HI-LO

3шт.

7

87520251

WIRE HARNESS

1шт.

8

87358400

KNOB

RH

1шт.

9

12451844

TERMINAL CONNECTOR,Male, 0.3 - 0.6 mm2

L/CAB

4шт.

10

12452283

GASKET

4шт.

11

12453387

MULTIPOLE CONNECTOR

1шт.
