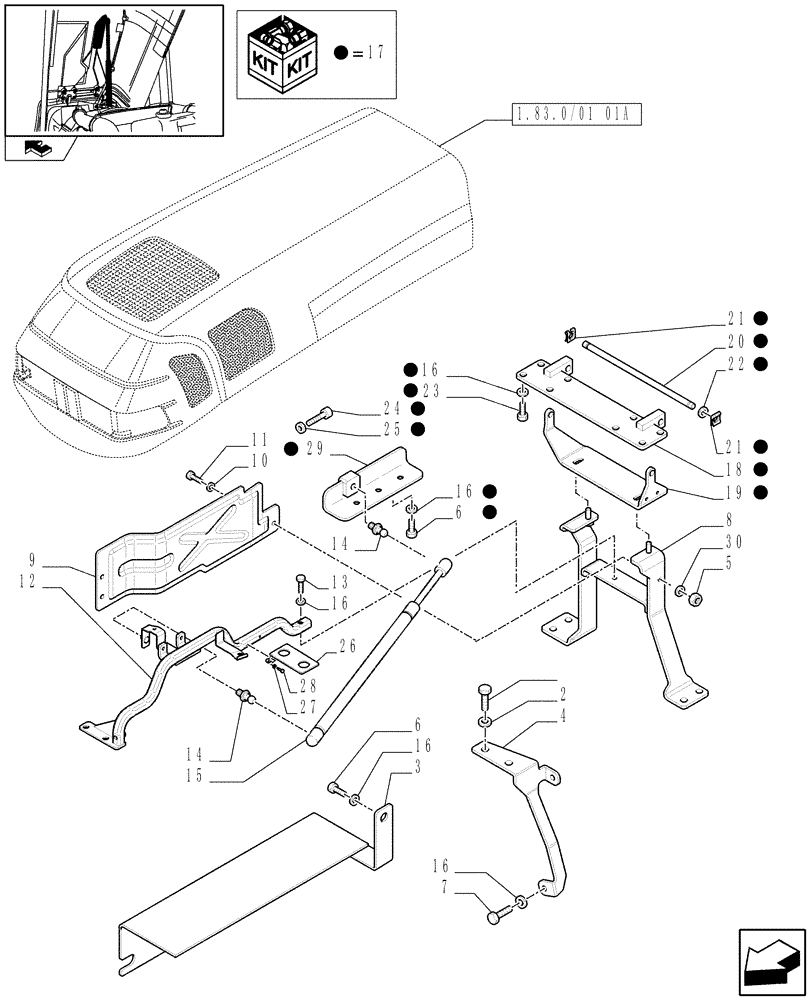

Запчасти Case IH FARMALL 95N (1.83.0/01[06A]) - HOOD GAS SPRING, HINGE SUPPORT AND HEAT SHIELD PROTECTION - D7050 (08) - SHEET METAL

1

11112531

BOLT,Hex, M12 x 32mm, Cl 10.9, Full Thd

2шт.

2

11197974

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

2шт.

3

84161730

HEAT SHIELD

1шт.

4

87633893

BRACKET

LH

1шт.

5

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

6

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

7

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

8

84468277

BRACKET

1шт.

P.N. 84468277 must be Associate with P.N.84468190

1шт.

9

87737373

GUARD

1шт.

10

14498821

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

4шт.

11

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

12

84164155

SUPPORT

1шт.

13

16043314

3шт.

14

87603835

BALL STUD,10mm D, M8 x 13mm

2шт.

15

87489635

SHOCK ABSORBER

1шт.

16

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

17

84291094

COWLING

See also Pages 01, 02

1шт.

18

84164104

HINGE

1шт.

19

84468190

BRACKET

1шт.

P.N. 84468190 must be Associate with P.N. 84468277

1шт.

20

87689078

PIN

1шт.

21

11064071

CLIP,M8 x 6 x 0.94mm

2шт.

22

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

23

16043514

SCREW,Hex, M8 x 22mm, Cl 5.8

8шт.

24

5113531

SCREW,M4 x 10mm, Cl 8.8

4шт.

25

14497731

WASHER,4.3mm ID x 8mm OD x 0.8mm Thk

4шт.

26

84169277

BRACKET

1шт.

27

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

28

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

1шт.

29

84209441

BRACKET

1шт.

30

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.
