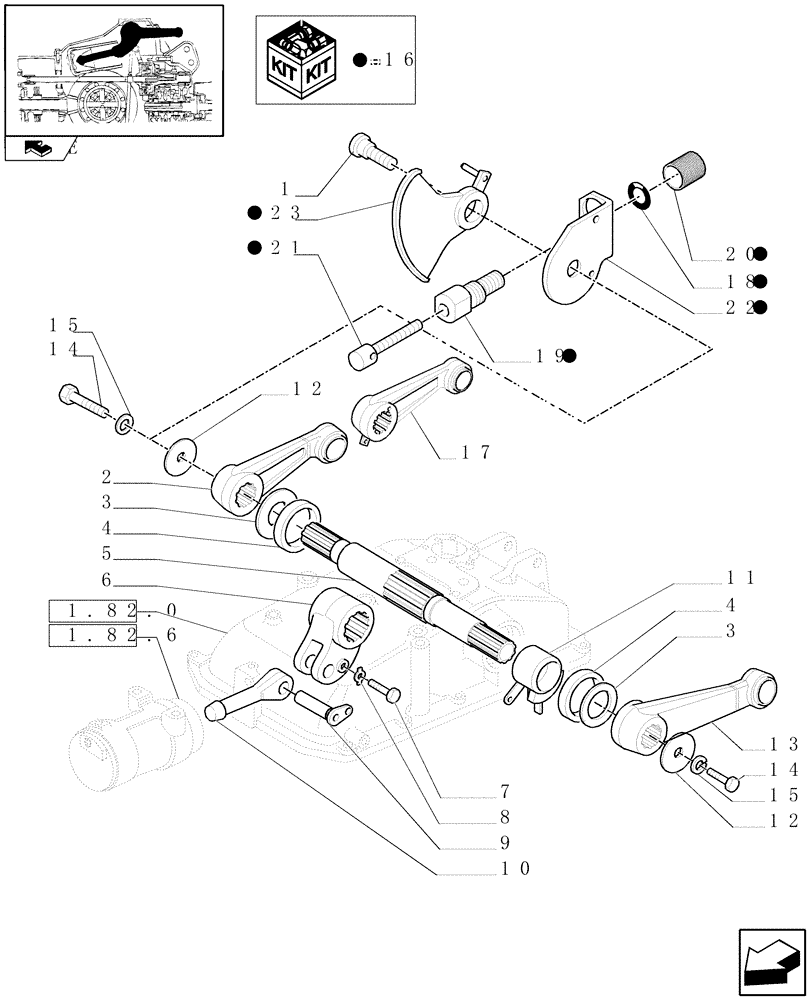

Запчасти Case IH FARMALL 95N (1.82.8) - HYDRAULIC LIFT, LIFT ARMS AND CONNECTING SHAFT (07) - HYDRAULIC SYSTEM

1

5194674

HEX SOC SCREW,Hex, M14 x 1.5 x 47mm

1шт.

75N Model, 85N Model, 95N Model

1шт.

2

84122688

ARM

ASSY, RH

1шт.

3

5125649

SPACER,47mm ID x 85mm OD x 6mm L

2шт.

4

5125650

OIL SEAL,48mm ID x 65mm OD x 10mm Thk

48 x 65

2шт.

5

5176508

CONTROL SHAFT,50/43.5mm ID x 54.4/46.5mm OD x 428mm L, 42/60T

1шт.

6

5176633

ARM

1шт.

7

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

8

14198810

LOCKING PLATE,M10

D=10

1шт.

9

5176612

PIN,60mm L

1шт.

10

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

11

5176643

RING,48mm ID x 63mm OD x 49.5mm Thk

1шт.

11

5196478

RING

1шт.

Electronic Lifter, VAR.331832-332832

1шт.

12

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

13

5187370

LIFT ARM

ASSY, LH

1шт.

14

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

2шт.

65V Model, 75V Model, 85V Model, 95V Model

1шт.

15

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

2шт.

65V Model, 75V Model, 85V Model, 95V Model

1шт.

16

87696306

STOP

ASSY

1шт.

75N Model, 85N Model, 95N Model

1шт.

17

5187400

LIFT ARM

1шт.

Electronic Lifter, VAR.331832-332832

1шт.

18

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

19

5194677

BOLT,Bolt

1шт.

20

47134218

KNOB

1шт.

21

47134219

ADJUSTMENT SCREW,M8 x 1.25 x 63mm L

1шт.

22

87696283

SUPPORT

1шт.

23

87696305

STOP

1шт.
