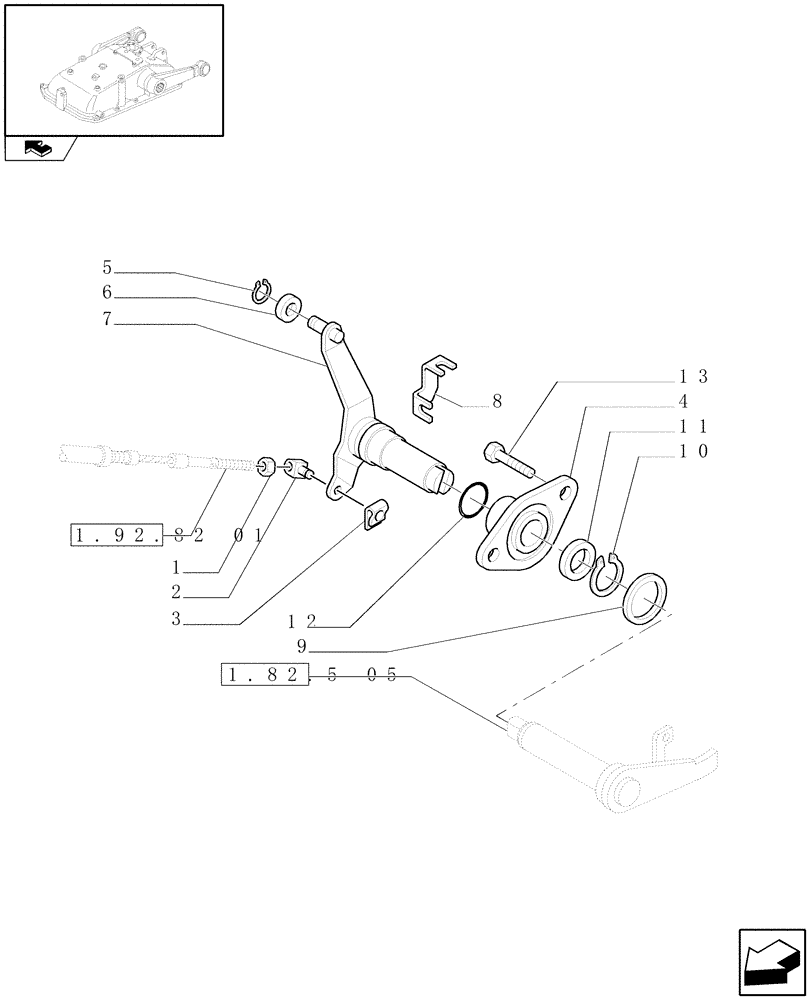

Запчасти Case IH FARMALL 95N (1.82.5[06]) - HYDRAULIC LIFT OUTER AND INNER CONTROLS (07) - HYDRAULIC SYSTEM

1

12574215

NUT,M6 x 1, Cl 8

1шт.

2

5138330

PIN,5mm OD x 17.5mm L

1шт.

3

11063876

SPRING CLIP,M5 x 4mm

1шт.

4

5176916

SUPPORT

1шт.

5

9990741

SNAP RING,M8, Ext

1шт.

6

5111028

ROLLER,18mm OD x 10mm L

1шт.

7

5176289

LEVER

1шт.

75N Model, 85N Model, 95N Model

1шт.

7

5188533

LEVER

1шт.

65V Model, 75V Model, 85V Model, 95V Model

1шт.

8

5176340

BRACKET

1шт.

9

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

10

300625

SNAP RING,M16, Ext

1шт.

11

10520207

WASHER,M16 x 28 x 3

1шт.

12

86637641

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

1шт.

13

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.
