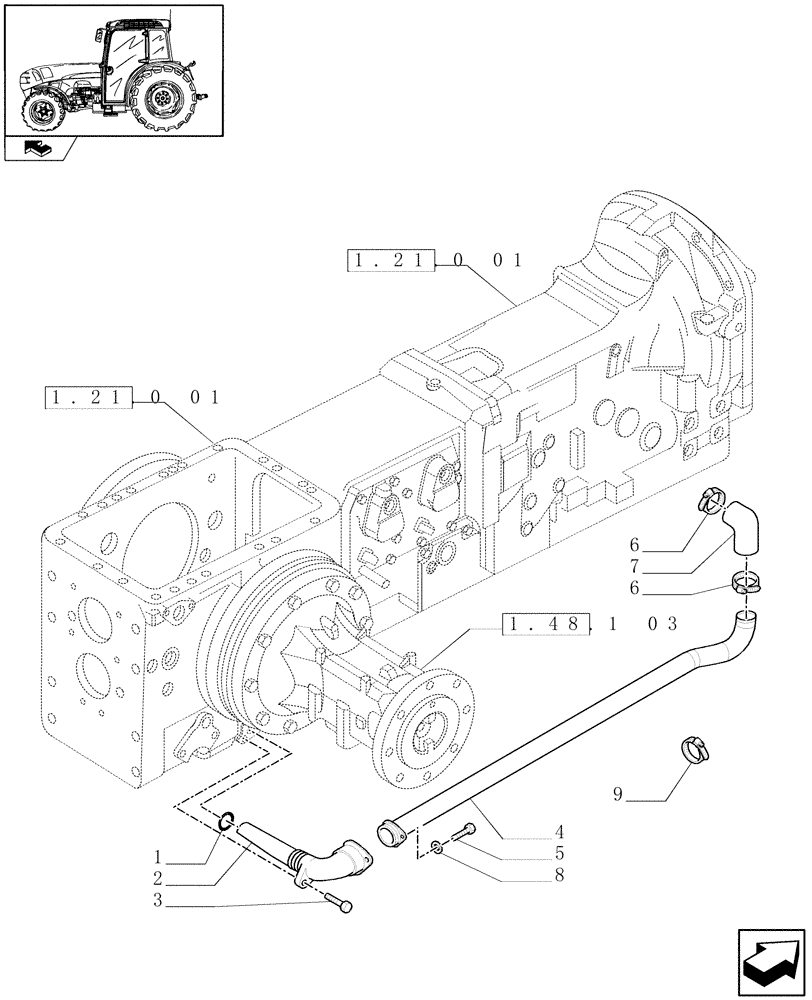

Запчасти Case IH FARMALL 95N (1.82.1/01[02]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

1

5174527

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

2

5177027

RIGID TUBE

1шт.

3

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

1шт.

4

87587321

RIGID TUBE,45 mm OD x 1191, 49.9 mm L

1шт.

5

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

6

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

D=40 - 60

2шт.

7

5188195

ELBOW,45mm ID x 145mm L

1шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

9

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

D=32 - 50

1шт.
