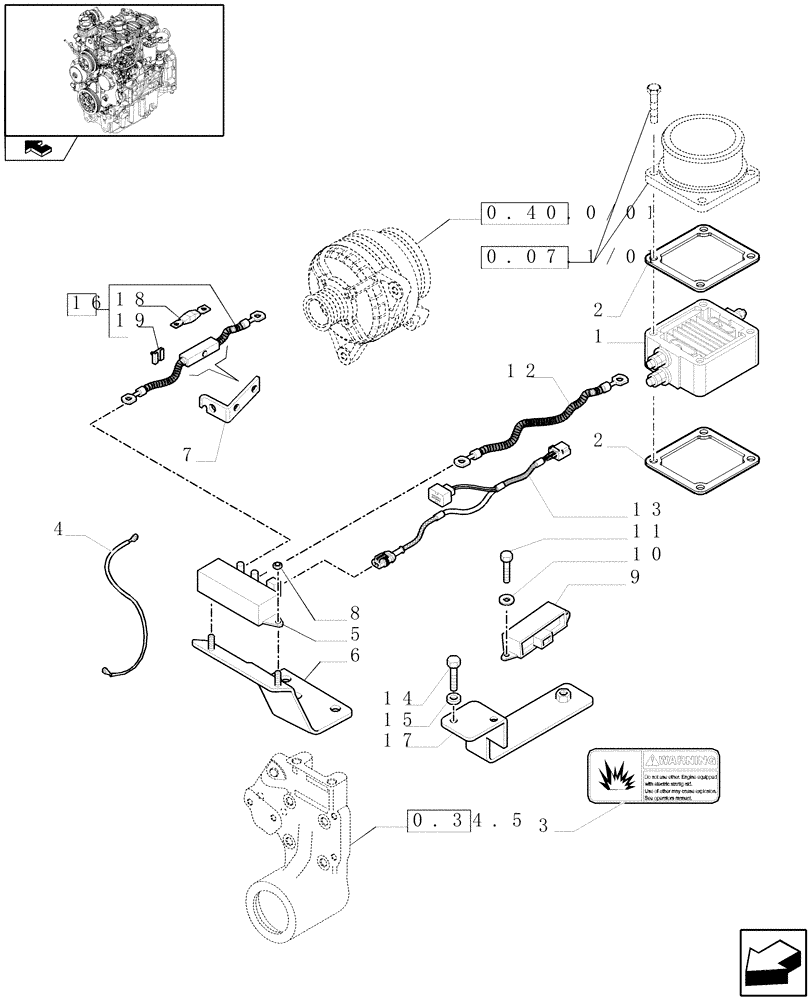

Запчасти Case IH FARMALL 95N (1.75.4/05[02]) - AIR HEATER ENGINE STARTING AID - HEATER, CABLES AND BRACKETS (VAR.334206) (06) - ELECTRICAL SYSTEMS

1

2831019

HEATER,24V

1шт.

2

4899921

GASKET,1.2mm Thk

2шт.

3

87803277

WARNING DECAL

Air Heater, Serial Range: -C7235

1шт.

4

47129391

WIRE HARNESS

1шт.

5

82022813

RELAY,12V, High Current

12V

1шт.

6

84163848

BRACKET

1шт.

7

87477130

BRACKET

1шт.

8

12574211

NUT,M6 x 1, Cl 8

2шт.

9

87357538

ECU

1шт.

10

11188674

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1mm Thk

2шт.

11

13276014

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

2шт.

12

87474366

ELECTRIC CABLE

1шт.

13

87477023

ELECTRIC CABLE

1шт.

Grid Heater Unit Dashboard Harness

1шт.

14

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

15

14498801

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

2шт.

16

87474361

ELECTRIC CABLE

1шт.

17

87390691

BRACKET

1шт.

18

11056290

FUSE,125A, Maxi

125A

1шт.

19

87323673

BRACKET

2шт.
