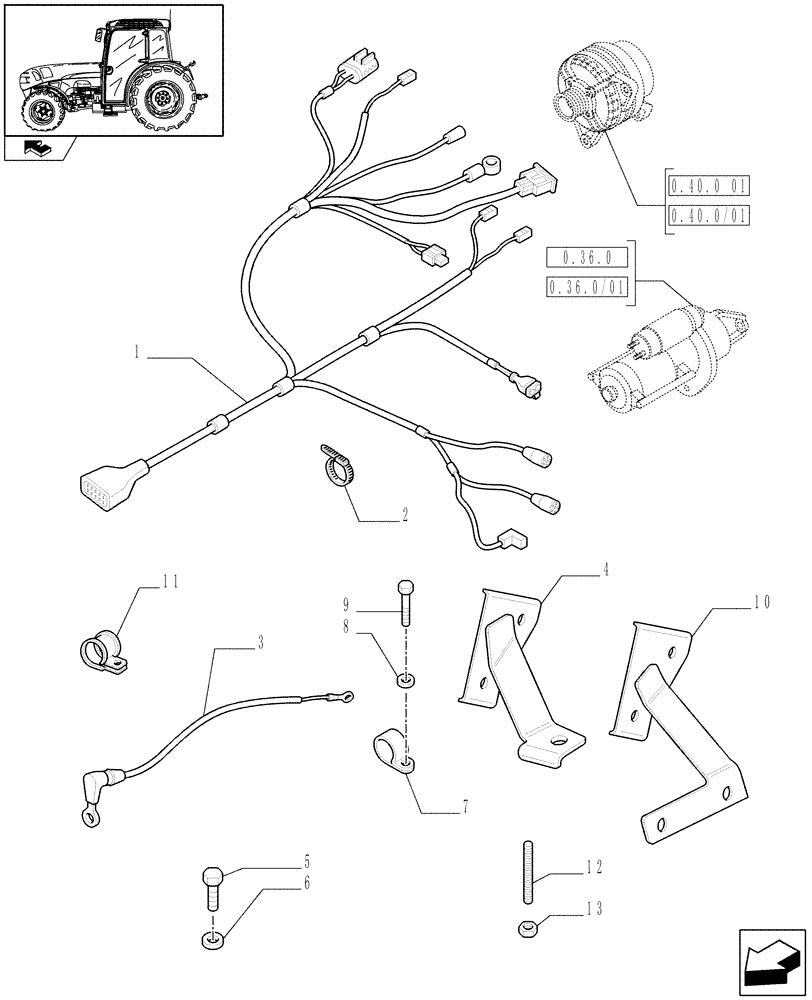

Запчасти Case IH FARMALL 95N (1.75.4[01]) - ENGINE HARNESS (06) - ELECTRICAL SYSTEMS

1

87629889

ELECTRIC CABLE

L/CAB, Serial Range: -C7067

1шт.

Engine Side Harness

1шт.

65V Model, 75V Model, 75N Model, 85V Model, 85N Model

1шт.

1

84478280

HARNESS

W/CAB, Start Serial: D7067

1шт.

Engine Side Harness

1шт.

65V Model, 75V Model, 75N Model, 85V Model, 85N Model

1шт.

1

87629888

ELECTRIC CABLE

L/CAB, Serial Range: -C7067

1шт.

95V Model, 95N Model

1шт.

Engine Side Harness

1шт.

1

84478283

HARNESS

W/CAB, Start Serial: D7067

1шт.

95V Model, 95N Model

1шт.

Engine Side Harness

1шт.

1

87629890

ELECTRIC CABLE

W/CAB, Serial Range: -C7067

1шт.

Engine Side Harness

1шт.

65V Model, 75V Model, 75N Model, 85V Model, 85N Model

1шт.

1

84478255

HARNESS

L/CAB, Start Serial: D7067

1шт.

Engine Side Harness

1шт.

65V Model, 75V Model, 75N Model, 85V Model, 85N Model

1шт.

1

87629881

ELECTRIC CABLE

W/CAB, Serial Range: -C7067

1шт.

95V Model, 95N Model

1шт.

Engine Side Harness

1шт.

1

84478261

HARNESS

L/CAB, Start Serial: D7067

1шт.

95V Model, 95N Model

1шт.

Engine Side Harness

1шт.

2

14560287

CABLE TIE,207.00mm L

COLLAR

5шт.

3

87370901

CABLE

W/CAB

1шт.

Harness From Starter Motor to Alternator

1шт.

4

87477136

BRACKET

1шт.

95V Model, 95N Model

1шт.

5

16042931

BOLT,Hex, M8 x 1.25 x 10mm, Cl 10.9, Full Thd

1шт.

5

10979421

SCREW,Hex, M6 x 10mm, Cl 8.8

1шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

6

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

1шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

7

10450390

RETAINER COLLAR,14mm, Coat, 9mm Bolt Hole, P Type

1шт.

95V Model, 95N Model

1шт.

8

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

95V Model, 95N Model

1шт.

9

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

95V Model, 95N Model

1шт.

10

87486565

BRACKET

1шт.

65V Model, 75V Model, 75N Model, 85V Model, 85N Model

1шт.

11

84172402

BRACKET

W/CAB

1шт.

12

13516920

STUD,M8 x 12mm x 22mm, Cl 8.8

M8 x 12 x 22

2шт.

65V Model, 75V Model, 75N Model, 85V Model, 85N Model

1шт.

13

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

65V Model, 75V Model, 75N Model, 85V Model, 85N Model

1шт.
