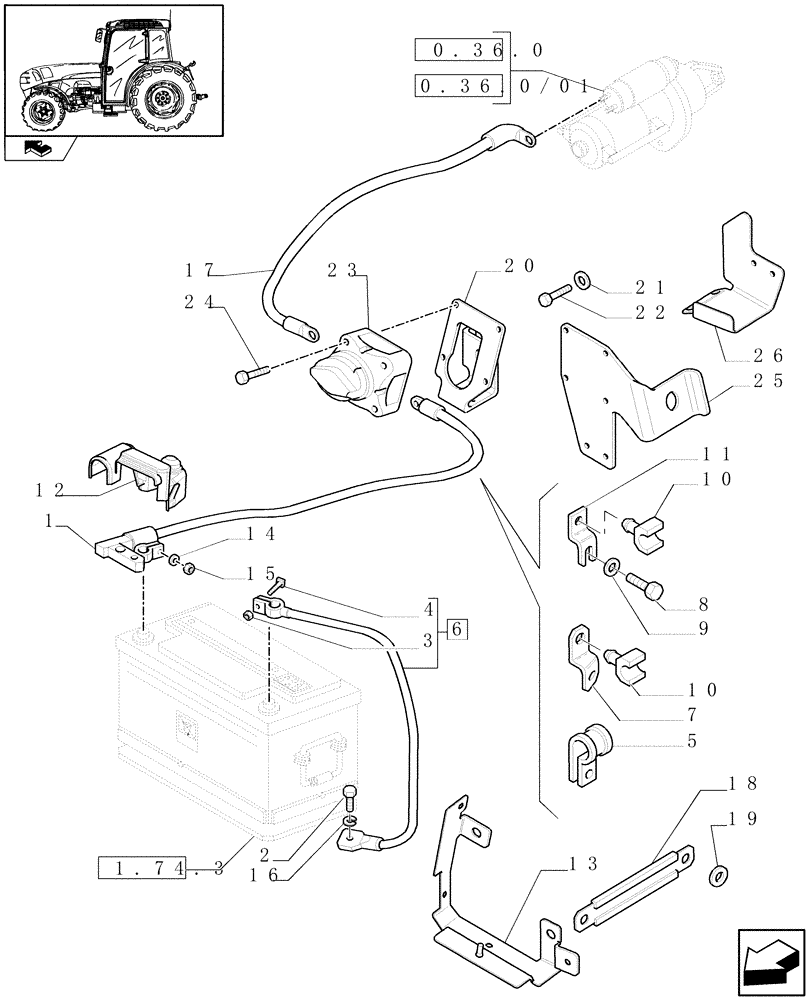

Запчасти Case IH FARMALL 95N (1.75.3[01A]) - BATTERY CABLES - D6512 (06) - ELECTRICAL SYSTEMS

1

84283017

ELECTRIC CABLE

ASSY

1шт.

2

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

3

15896218

NUT,Hex, M6 x 1

1шт.

4

11945008

SCREW,Sqr Head, M6 x 1 x 30mm

M6 x 30

1шт.

5

5145401

CLAMP

2шт.

5

14050690

2шт.

6

5111023

GROUND CABLE

ASSY

1шт.

7

5179441

BRACKET

1шт.

8

14038111

BOLT

M8 x 18

1шт.

9

10571774

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

2шт.

10

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

D=1-14

5шт.

11

5120229

PLATE

1шт.

12

87526978

PROTECTION CAP

1шт.

13

87475457

BRACKET

1шт.

14

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

15

10720111

NUT,M6, Cl 8

1шт.

16

12647011

WASHER,8.15mm ID x 25mm OD x 2.5mm Thk

1шт.

17

84291186

ELECTRIC CABLE

1шт.

18

5180723

BRACKET

1шт.

19

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

20

84283497

BRACKET, SUPPORTING

1шт.

21

10520207

WASHER,M16 x 28 x 3

1шт.

22

11376224

BOLT,Hex, M16 x 1.5 x 35, 8.8, Full Thd

1шт.

23

82022881

BATTERY CUT-OUT

1шт.

24

14304724

HEX SOC SCREW,M5 x 50mm, Cl 8.8, Full Thd

4шт.

25

84300783

GUARD

1шт.

With 4WD Engagement, for EDC, VAR.336307-338307

1шт.

26

84300723

BRACKET

1шт.

With 4WD Engagement, for EDC, VAR.336307-338307

1шт.
