Запчасти Case IH FARMALL 95N (1.68.5/01[01]) - 4WD FRONT AXLE WITH BRAKES - PIPES (VAR.336329) (05) - REAR AXLE

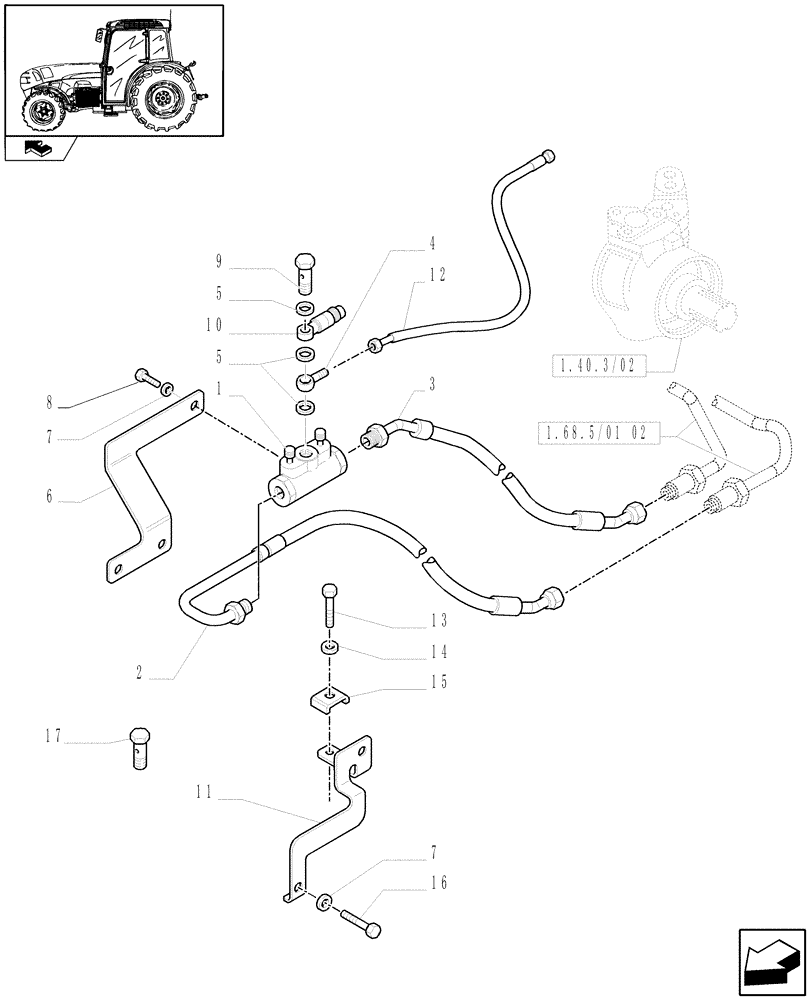

Схема запчастей Case IH FARMALL 95N - (1.68.5/01[01]) - 4WD FRONT AXLE WITH BRAKES - PIPES (VAR.336329) (05) - REAR AXLE
home
1.68.5/01 02
16
12
7
1
5
2
5
9
13
4
6
7
1.40.3/02
14
10
11
3
17
15
8

Артикул

Название

Примечание

Количество

1

5143506

MASTER CYLINDER

1шт.

2

87485986

RIGID TUBE,6.35 mm OD x 260, 42 mm L

LH

1шт.

3

87485985

RIGID TUBE,6.35 mm OD x 220, 50.8 mm L

RH

1шт.

4

5155643

BANJO BOLT

3шт.

5

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

D=12

7шт.

6

87486576

SUPPORT

1шт.

65V Model, 75V Model, 75N Model, 85V Model, 85N Model

1шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

9

87392054

HYD CONNECTOR,M12 x 1 x 42.5mm L

1шт.

10

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.

11

87474097

SUPPORT

1шт.

95V Model, 95N Model

1шт.

12

87312921

FLEXIBLE HOSE,4.75 mm ID x 1760.00 mm

1шт.

13

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

14

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

15

5161207

RETAINER COLLAR,7mm ID x 23mm L

1шт.

95V Model, 95N Model

1шт.

16

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

17

10185011

BANJO BOLT,M12 x 1.25 x 23mm

2шт.

Выбрано товаров: 20
