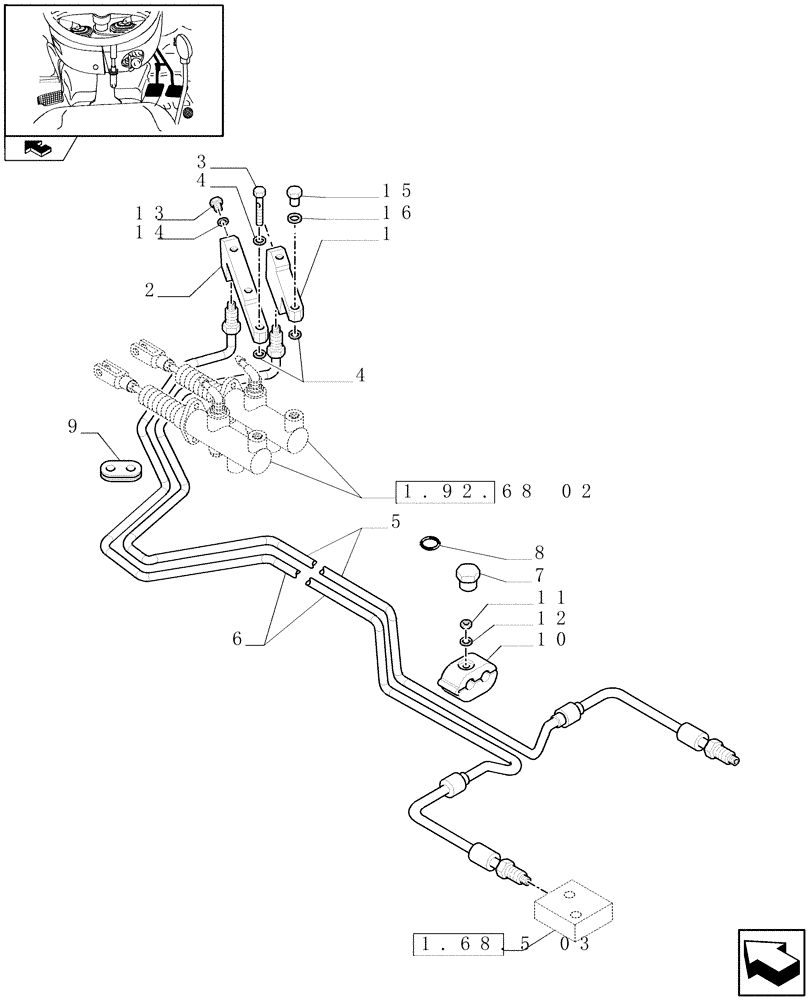

Запчасти Case IH FARMALL 95N (1.68.5[02]) - BRAKE PIPING - D6665 (05) - REAR AXLE

1

87738906

HYD CONNECTOR

1шт.

2

87738907

HYD CONNECTOR

1шт.

3

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12 x 1.25 x 22

2шт.

4

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

12MM

4шт.

5

84227323

PIPE

RH, Rear

1шт.

6

84227325

PIPE

LH, Rear

1шт.

7

5120596

PLUG,18mm

D=18

4шт.

8

70933922

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

2шт.

9

87565323

GROMMET,2x8mm ID x 38mm L x 10mm Thk

1шт.

10

87738904

CLAMP BRACKET

4шт.

11

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

4шт.

12

12638104

WASHER,5.2mm ID x 14mm OD x 1mm Thk

4шт.

13

10300211

PLUG,HEX, M6 x 1

M6

2шт.

14

5162313

SEALING WASHER,4.8mm ID x 10mm OD x 1mm Thk

D=6

2шт.

15

10300911

PLUG,M8 x 1.25 x 11, Cl5.8

2шт.

16

87667800

SEALING WASHER,M8

D=8

2шт.
