(1.40.0/10A) - DIFFERENTIAL SHAFT - BREAKDOWN

Запчасти Case IH FARMALL 95N (1.40.0/10A) - DIFFERENTIAL SHAFT - BREAKDOWN (04) - FRONT AXLE & STEERING

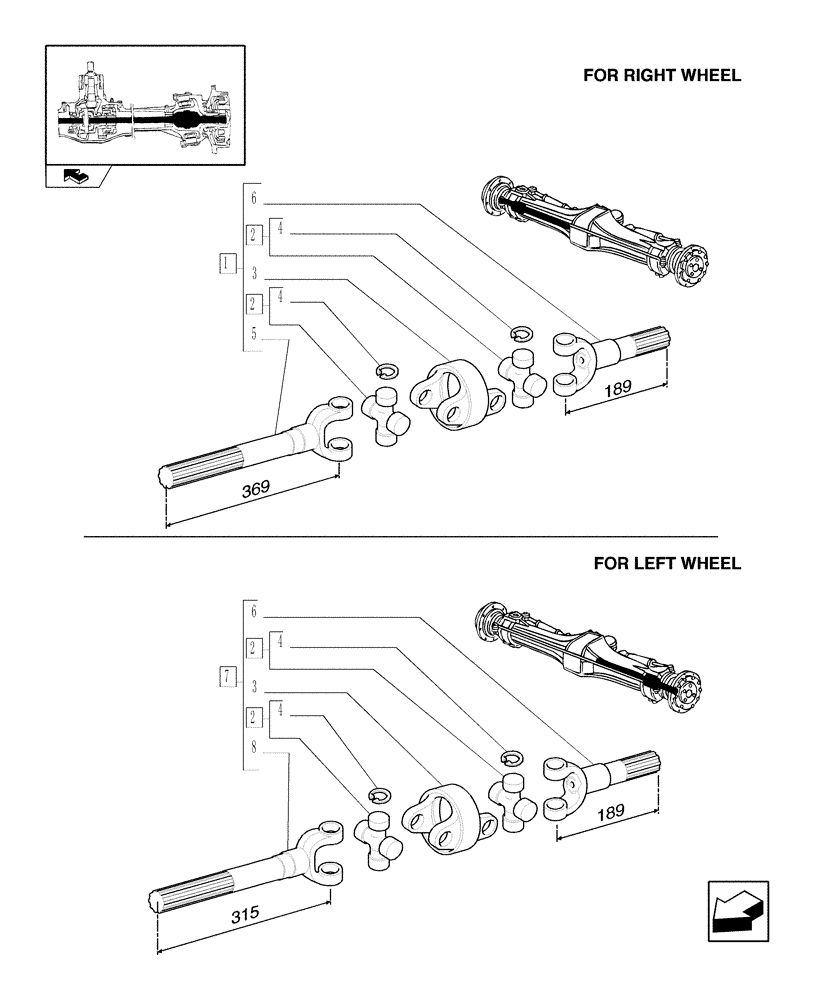

Схема запчастей Case IH FARMALL 95N - (1.40.0/10A) - DIFFERENTIAL SHAFT - BREAKDOWN (04) - FRONT AXLE & STEERING
8
1
4
4
4
6
3
6
home
2
2
2
7
4
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5184854

AXLE-SHAFT, ARTICULA,23.7/27.7mm ID x 29.5/42.5mm OD x 615mm L, 10/12T

RH

1шт.

2

5191024

SPIDER

2шт.

3

5191027

YOKE

1шт.

4

5191091

LOCKING RING

8шт.

5

5191029

YOKE

1шт.

6

5191026

YOKE

1шт.

7

5184853

AXLE-SHAFT, ARTICULA,23.7/27.7mm ID x 29.5/42.5mm OD x 561mm L, 10/12T

LH

1шт.

8

5191028

YOKE

1шт.
